W10 4G Standby King Main view
W10 4G Standby King Main view

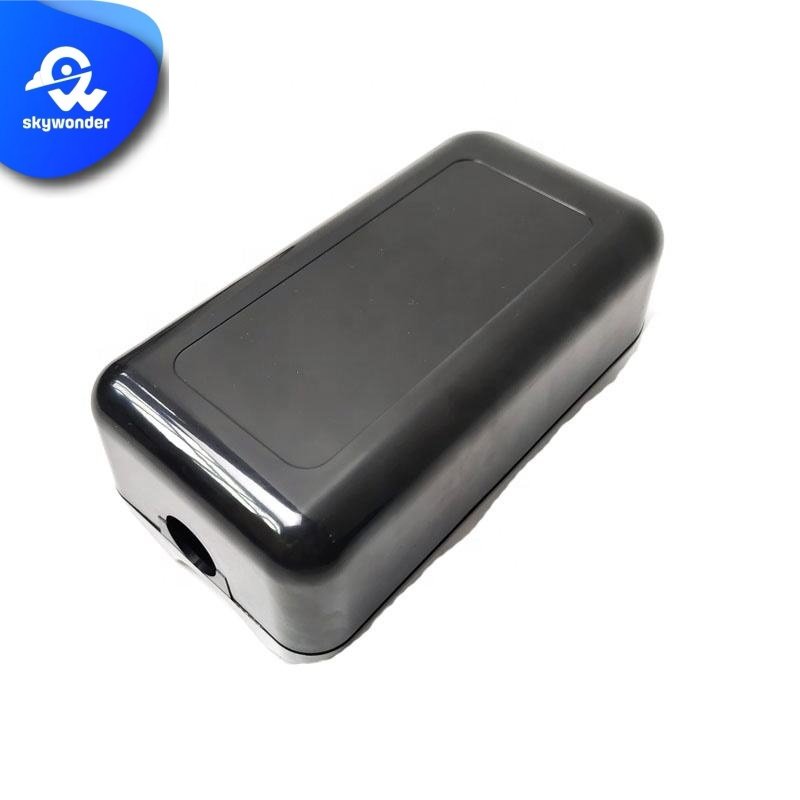

W10 4G Standby King

  • Electronic fence：When the terminal exceeds the set fence，it will generate a fence alarm
  • Vibration alarm：The device is manually turned on fortified state, and the vibration alarm will be uploaded after the vehicle vibrates
  • Low power alarm：When the built-in battery of the deviceis low, the low battery alarm will be triggered
  • Intelligent power saving mode：The digital unit is seconds, and the default is 10 seconds to locate once.This mode is the most accurate mode for positioning.G-SENSOR controls the terminal to work and works for 4 minutes each time.
  • GPS positioning：When the GPS signal is not found.automatically start the base station positioning
  • Disassembly alarm：Realize disassembly alarm when the detection changes from dark to bright
Order on WhatsApp
Categories , , , Tags , , , , , ,

Description

W10 is a 4G mini ultra-portable wireless GPS positioning tracker with a strong magnetic design that can be easily attached to vehicles or other metal surfaces. The tracker has an intelligent alarm system, including displacement alarm, low battery alarm and overspeed alarm. The product supports 4G network connection and has satellite tracking function, which can achieve global coverage positioning and track multiple vehicles simultaneously through a multi-vehicle management platform. It is an ideal choice for fleet management, logistics transportation and personal vehicle monitoring.

Features

  • Electronic fence：When the terminal exceeds the set fence，it will generate a fence alarm
  • Vibration alarm：The device is manually turned on fortified state, and the vibration alarm will be uploaded after the vehicle vibrates
  • Low power alarm：When the built-in battery of the deviceis low, the low battery alarm will be triggered
  • Intelligent power saving mode：The digital unit is seconds, and the default is 10 seconds to locate once.This mode is the most accurate mode for positioning.G-SENSOR controls the terminal to work and works for 4 minutes each time.
  • GPS positioning：When the GPS signal is not found.automatically start the base station positioning
  • Disassembly alarm：Realize disassembly alarm when the detection changes from dark to bright

Specifications

Product parametersDescription
Hardware platformN58/N27+AT6558R
PCBA size85mm*50mm*32mm
Wireless transmissionGPRS/FDD-LTE CAT1/TDD-LTE CAT1
GPS chipAT6558R (BD+GPS)
Obtain sensitivity– 144dBm
Tracking sensitivity– 165dBm
Power input5V charging


GPS positioning time

Hot start ＜ 2sec (open sky)
Warm start < 15sec
Cold start < 38sec (open sky)
GSM,antennaShrapnel antenna
GPS antennaBuilt in 25mm * 25MM * 2mm ceramic antenna
power switchsupport
Acceleration sensorsupport
Microphonesupport
Power status indicatorRED
GPS status indicatorBLUE
GSM status indicatorGREEN
Battery installationwelding
Battery capacityLithium battery 6000ma
WiFi PositioningNO support
Communication interface UARToptional
Temperature detectionoptional
Temperature detectionoptional
Backup location data999 articles
Product parametersDescription
Parameter settingSMS, platform
GPRS reporting methodOnce every 10 seconds
Working modeConstant connection
Remote voice monitoringsupport
Third party queryWEB/APP
Emergency call (SOS)reserve
Electronic fence functionsupport
Remote control oil and electricityNot support
Illegal thread cutting alarmsupport
Vehicle vibration alarmsupport
Collision and overturn alarmsupport




Remote viewing terminal status

GPS positioning status display

(background display)

GSM signal strength display (background display)
Battery power display

(background display is not supported)
