W108 4G 360° MDVR

W108 8-Channel AI Mobile DVR

Product Overview

The W108 is a professional-grade 8-channel AI Mobile DVR that integrates high-definition video recording, intelligent driving assistance, wireless transmission, and remote platform management into a single robust device. Purpose-built for commercial vehicles including buses, trucks, and construction machinery, the W108 delivers comprehensive 360° safety monitoring with its H.265 high-efficiency encoding, 10.1-inch touchscreen, and full-stack AI algorithms. Compliant with JT/T808 and JT/T1078 industry standards, the W108 seamlessly connects to government supervision platforms, making it the ideal choice for fleet operators seeking to enhance safety, streamline operations, and reduce costs.

1. 8-Channel HD Video Recording – Full Coverage, No Blind Spots

8-Channel Video Input: Supports simultaneous connection of up to 8 cameras with 1080P/720P/CVBS adaptive detection, covering front, rear, left, right, doors, cargo area, and cabin interior — eliminating every blind spot around the vehicle.

H.265/H.264 Dual Encoding: Leverages advanced H.265/H.264 compression technology to deliver crystal-clear HD video while significantly reducing file sizes — saving storage space and minimizing 4G data consumption, effectively lowering long-term operating costs.

1080P Full HD Recording: Supports 1080P high-definition recording with total encoding resources of 1080P@120fps. Configurable as 4 channels at 1080P@30fps or 8 channels at 1080P@15fps, delivering smooth, detailed footage.

Multiple Recording Modes: Supports automatic recording (recording upon power-on), ignition recording (recording upon engine start), scheduled recording (recording during preset time slots), and alarm-triggered recording — flexible enough for any operational scenario.

Audio & Video Synchronization: Supports 4-channel audio inputs, recording sound and video simultaneously for complete scene reconstruction.

Proprietary File System: Utilizes a bare-disk storage technology that improves read/write efficiency, ensuring video files remain intact and playback remains stable.

2. 10.1-Inch Touchscreen – Intuitive and Easy Operation

Large Screen Display: Built-in 10.1-inch HD touchscreen delivers clear, detailed visuals, allowing real-time preview of all camera feeds directly from the cabin.

Flexible Display Modes: Supports full-screen or 9-channel split display, freely switchable. When an alarm is triggered, the corresponding channel automatically expands to full screen, bringing critical incidents into focus instantly.

Multiple Control Options: Supports touchscreen, USB mouse, and infrared remote control — adapting to different user preferences with a simple and intuitive OSD menu interface.

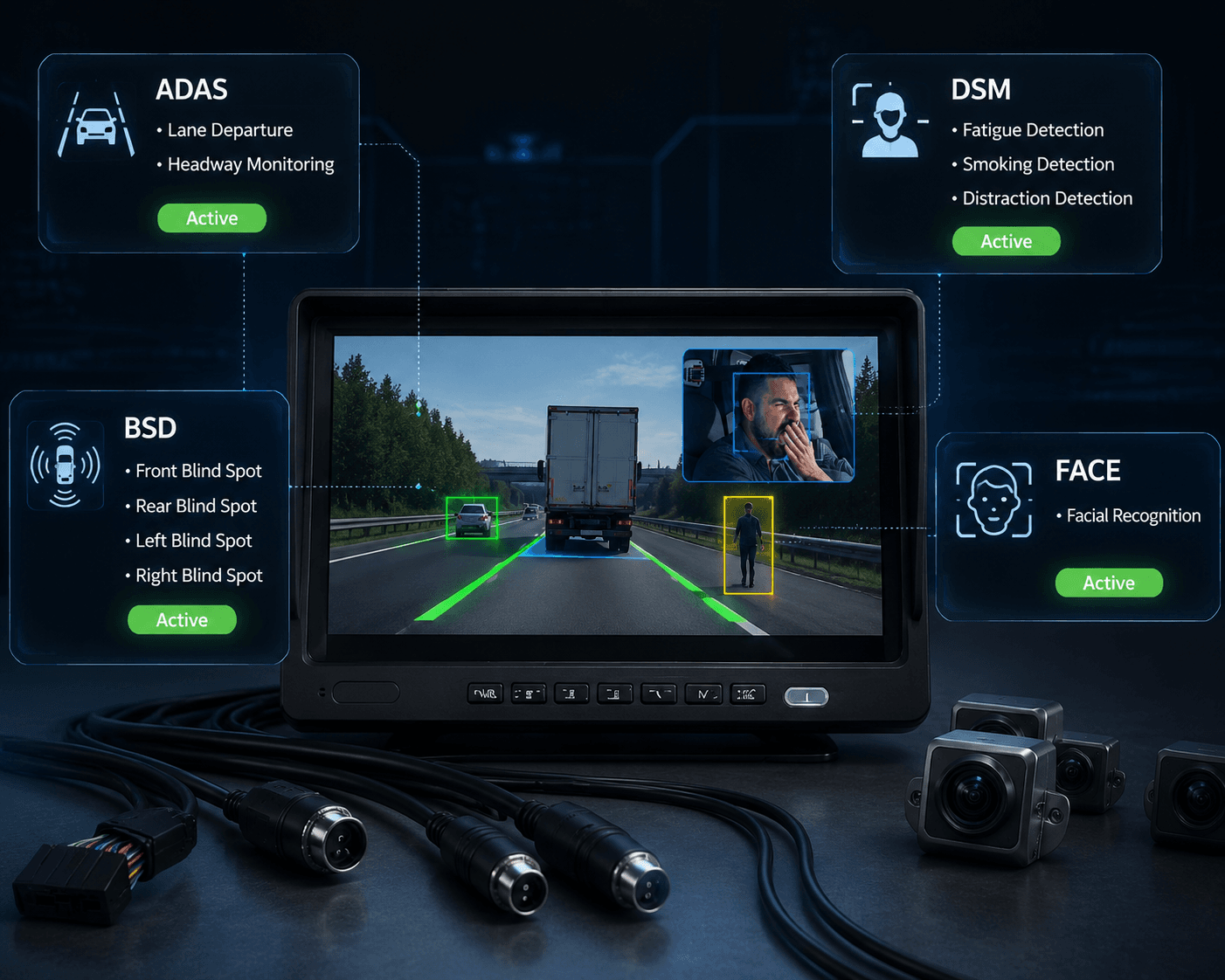

3. AI-Powered Safety Algorithms – Proactive Protection

ADAS (Advanced Driver Assistance System): Monitors lane departure, forward collision risk, and pedestrian proximity in real-time, issuing audible and visual warnings to alert the driver — effectively preventing rear-end collisions and lane departure accidents.

DSM (Driver Status Monitoring): Uses a cabin-facing camera to continuously monitor the driver's facial expressions. Detects fatigue (eye-closure, yawning), smoking, distraction (gaze deviation), and other unsafe behaviors — automatically triggering alerts to reduce accident risks at the source.

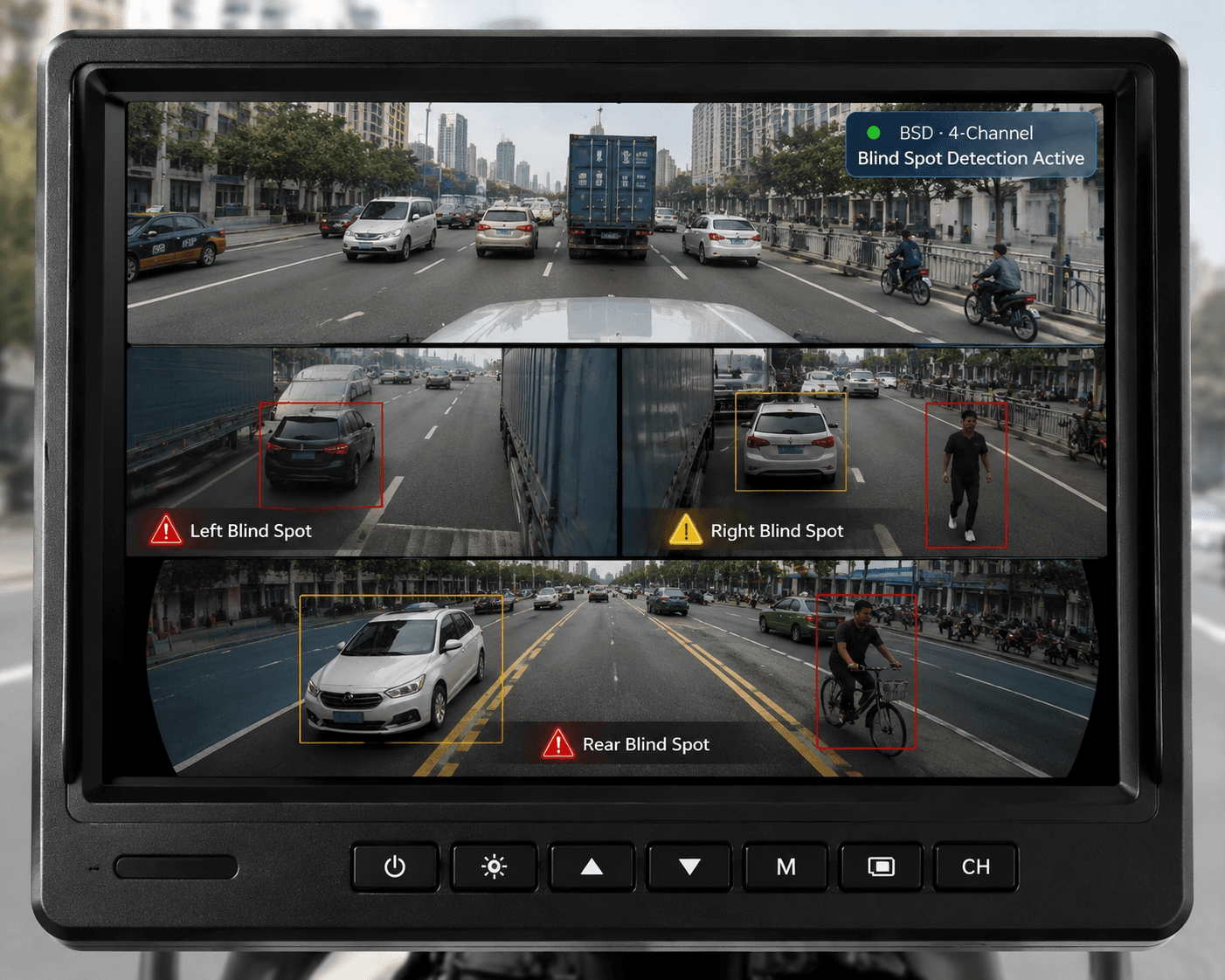

BSD (Blind Spot Detection): Continuously monitors left and right blind spots. When pedestrians, cyclists, or vehicles enter the blind zone during lane changes or turns, the system issues an immediate alert — effectively preventing sideswipe and collision incidents.

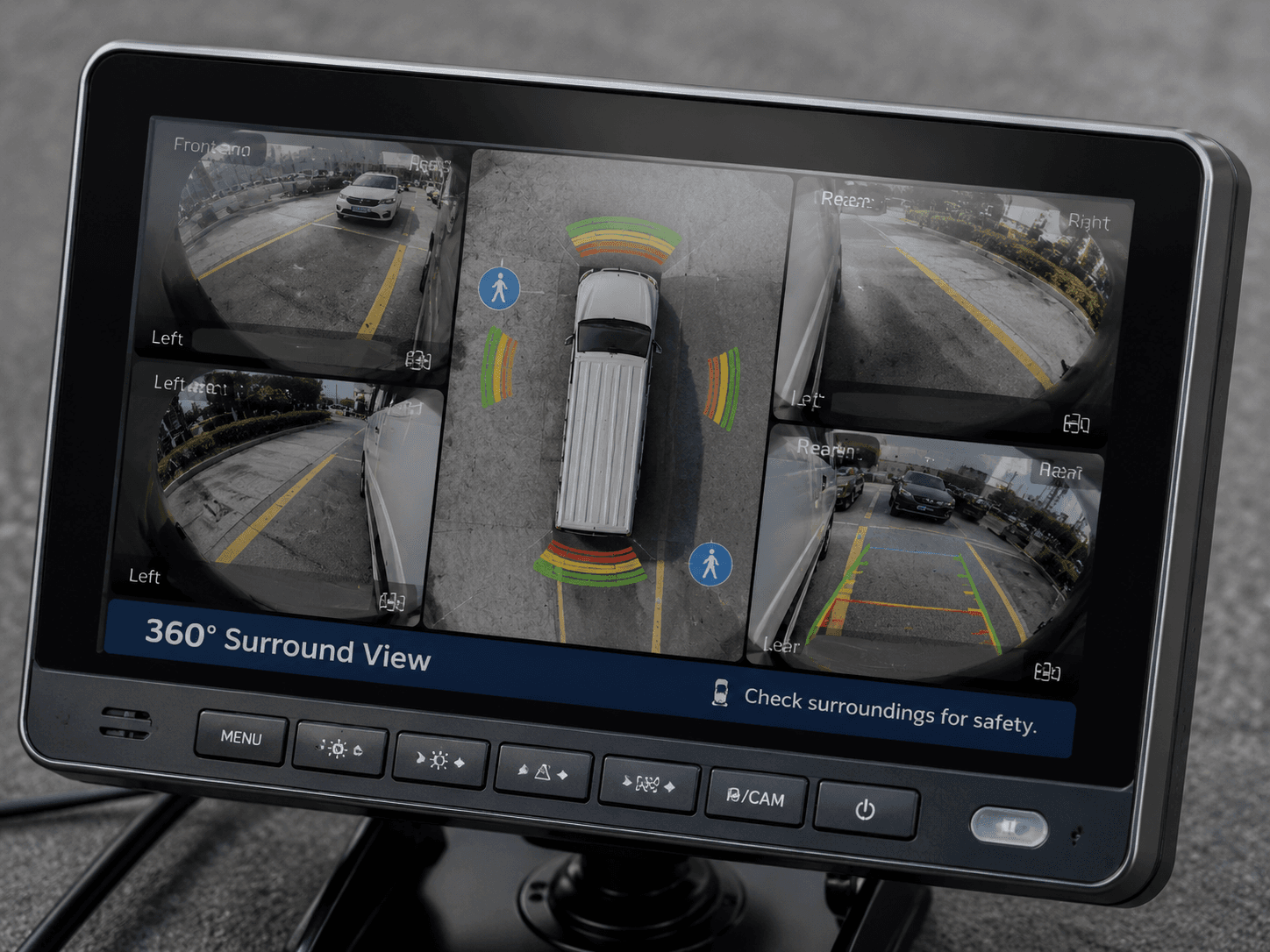

360° Surround View: Synthesizes feeds from multiple fisheye cameras into a seamless bird's-eye view of the vehicle's surroundings. Essential for reversing, narrow-road maneuvering, and eliminating all visual死角 around the vehicle.

4. 4G/WiFi/GPS – Always Connected

4G Wireless Connectivity: Built-in 4G communication module supports TDD-LTE and FDD-LTE across multiple bands. Simply insert a SIM card for immediate network access, enabling real-time video and data upload to the platform.

WiFi Hotspot: Supports 802.11b/g/n WiFi, capable of operating as an AP hotspot. Allows on-site video preview and parameter configuration via connected smartphones without consuming cellular data — simplifying maintenance and debugging.

GPS/BeiDou Dual-Mode Positioning: Supports both GPS and BeiDou satellite systems, reporting real-time vehicle location, speed, and travel trajectory to the platform and mobile APP — enabling precise fleet dispatch and management.

5. Mobile APP Remote Management – Anytime, Anywhere Control

Mobile APP: View real-time video, playback historical recordings, configure device parameters, and receive push notifications — all from your smartphone.

PC Client/Cloud Platform: Through the PC client or CMSV6 platform, manage multiple devices centrally, monitor live feeds, and achieve fleet-wide unified dispatching — dramatically improving operational efficiency.

Web Remote Configuration: Supports browser-based remote parameter configuration, eliminating the need for on-vehicle maintenance visits.

6. Industry-Standard Protocol Compliance – Certified and Compliant

JT/T808-2011/2019: Compliant with the National Standard for Road Transport Vehicle Satellite Positioning Systems, enabling real-time location reporting to government supervision platforms.

JT/T1076/1078-2016: Compliant with the National Standard for Road Transport Vehicle Video Surveillance and Transmission, supporting real-time video upload to supervision centers.

CMSV6 Protocol: Supports integration with mainstream third-party monitoring and management platforms for unified multi-platform device management.

7. Comprehensive Alarm and Alert System

6-Channel Alarm Input: Accepts signals from door switches, brakes, reverse gear, collision sensors, and more — automatically triggering alerts upon any abnormal event.

2-Channel Alarm Output: Upon alarm activation, can trigger strobe lights and sirens, or cut the vehicle's fuel supply and electrical system to enforce emergency stops — preventing incident escalation.

3-Axis Accelerometer: Built-in shock sensor detects sudden vehicle vibration or collision, automatically triggering alarm recording. Captures the full incident for post-event analysis and liability determination.

8. RS232/RS485 Expansion Interfaces

RS232 Serial Port: Connect external devices such as card readers, fuel sensors, and fare meters — ideal for taxi and logistics applications requiring identity authentication and operational data collection.

RS485 Serial Port: Connect PTZ cameras for remote pan-tilt-zoom control, enabling flexible camera angle adjustments.

Voice Intercom: Supports connection to a handset for two-way voice communication between driver and dispatch center — facilitating real-time coordination and remote guidance.

USB Port: Supports U disk for video backup and system upgrades, plus USB mouse connectivity for convenient operation.

9. 9-36V Wide Voltage Input with Comprehensive Power Protection

9-36V Wide Voltage Range: Fully compatible with both 12V (passenger cars, light trucks) and 24V (heavy trucks, buses, construction machinery) vehicle electrical systems — plug-and-play without the need for additional voltage converters.

Multiple Power Protections: Features overload protection, under-voltage protection, short-circuit protection, and reverse-polarity protection — preventing damage from incorrect wiring and adapting to complex vehicle electrical environments.

Ultra-Low Power Consumption: Operates at under 8W (without peripherals), preserving vehicle battery life and supporting extended parking surveillance.

Scheduled Power On/Off: Supports timed automatic start and shutdown, conserving battery power and extending device service life.

External Power Output: Provides stable 12V and 5V outputs for powering external cameras and peripherals — simplifying wiring and eliminating additional power supplies.

10. Wide Temperature Range – Built for Harsh Environments

-20℃ to +70℃ Operating Temperature: Reliably performs in extreme cold and heat — suitable for all climate conditions nationwide, year-round.

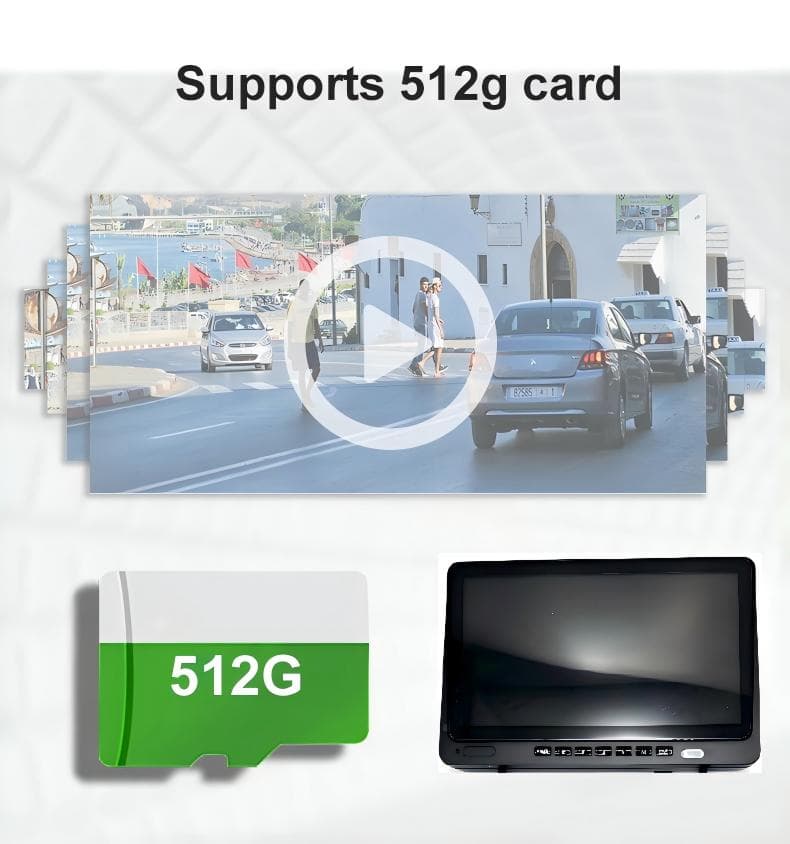

SD Card + SSD Dual Storage: Supports SD card storage (up to 512GB) and built-in SSD (PCIe interface, up to 2TB) — dual storage with mirroring capability ensures video data is never lost.

Multiple Upgrade Options: Supports U disk upgrades, SD card upgrades, and remote FTP automatic upgrades — making maintenance convenient and eliminating time-consuming on-site visits.

11. Application Scenarios

• Public Buses & Coaches: 8-channel full coverage, AI active safety protection, and 4G real-time upload ensure public passenger safety.

• Heavy Trucks & Logistics Vehicles: DSM fatigue detection and BSD blind-spot monitoring prevent long-haul driving accidents; GPS/BeiDou real-time positioning enables efficient fleet dispatch.

• Construction Machinery (Excavators, Cranes, etc.): 360° surround view assists safe operation; wide temperature and voltage tolerance withstand harsh job site conditions; vibration detection records incident moments.

• School Buses & Special Vehicles: Face recognition prevents unauthorized driving; JT/T industry-standard protocols enable government supervision platform access for full compliance.
