D12 4G/WiFi 5-Channel Dashcam

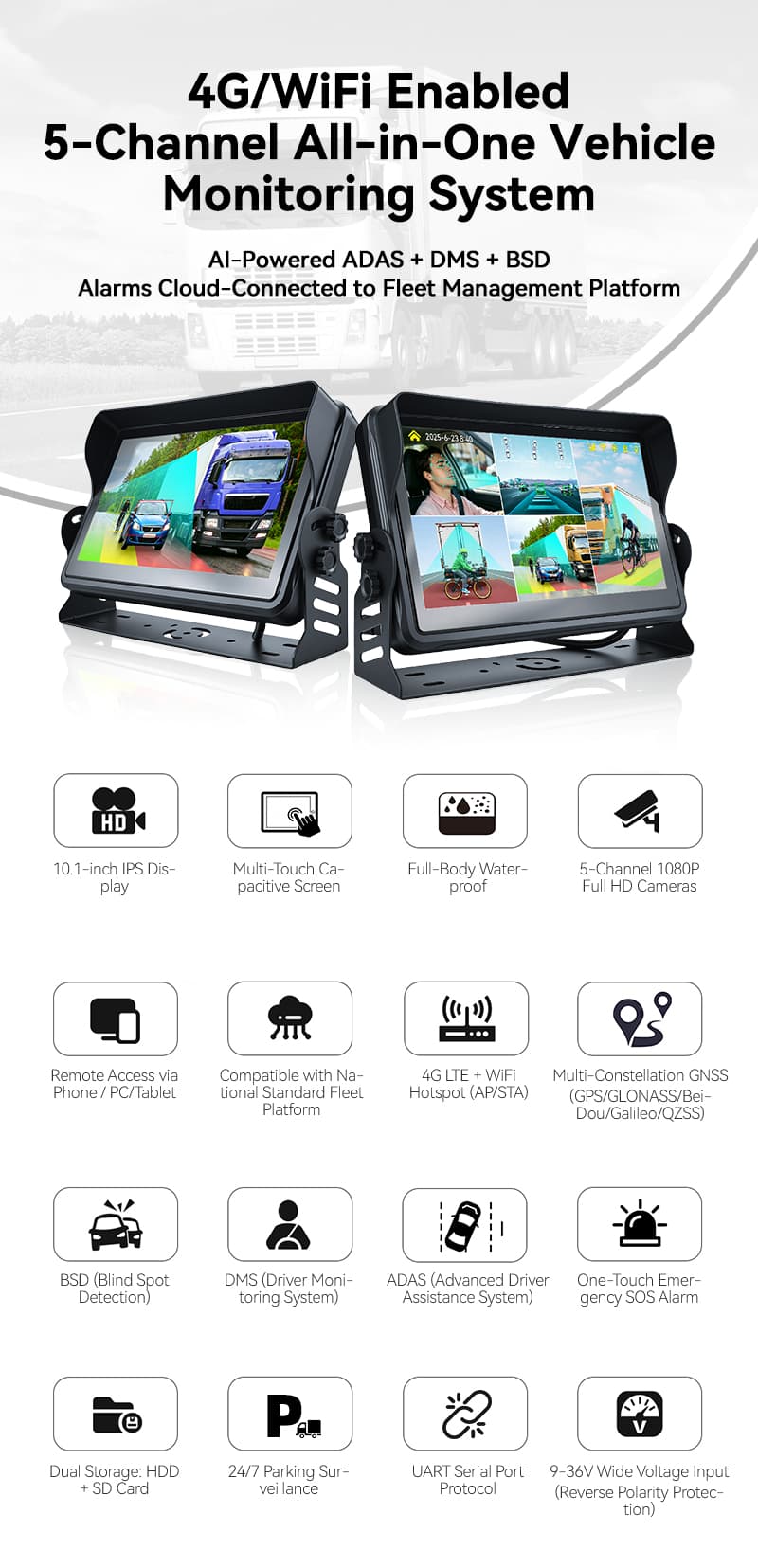

D12 5-Channel AI Vehicle Monitoring System | ADAS+DMS+BSD | 4G LTE + WiFi | 10.1" Touchscreen

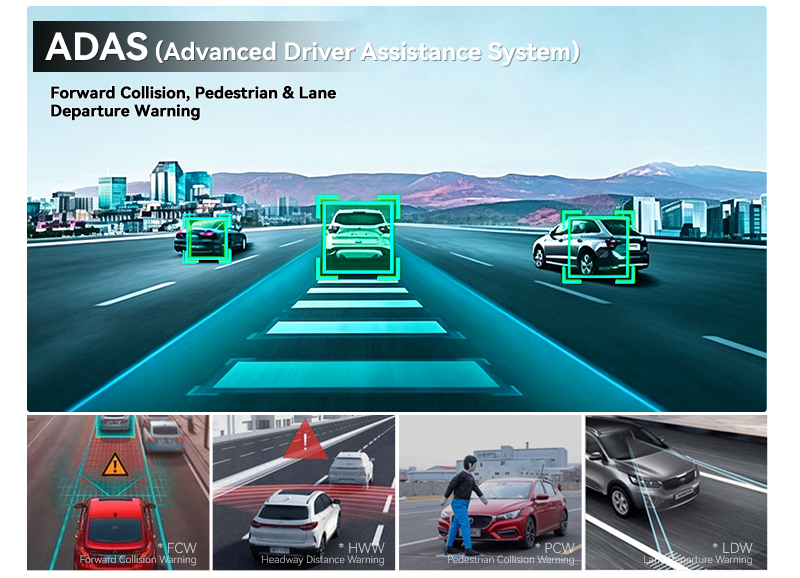

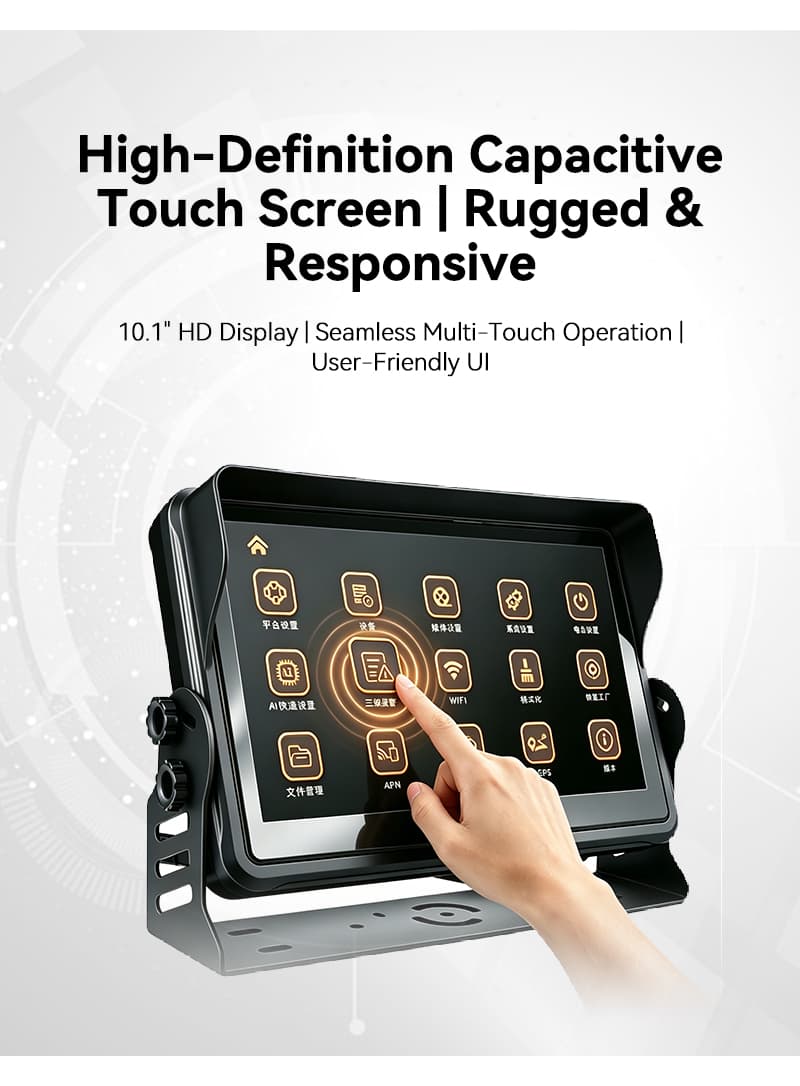

Designed for heavy-duty and special vehicles, this all-in-one fleet safety system combines 5×1080P Full HD cameras with AI-powered ADAS, DMS, and BSD algorithms to deliver real-time collision warnings, driver fatigue detection, and right-side blind spot monitoring — all displayed on a 10.1-inch HD IPS capacitive touchscreen with seamless multi-touch operation.

1.Built for harsh environments

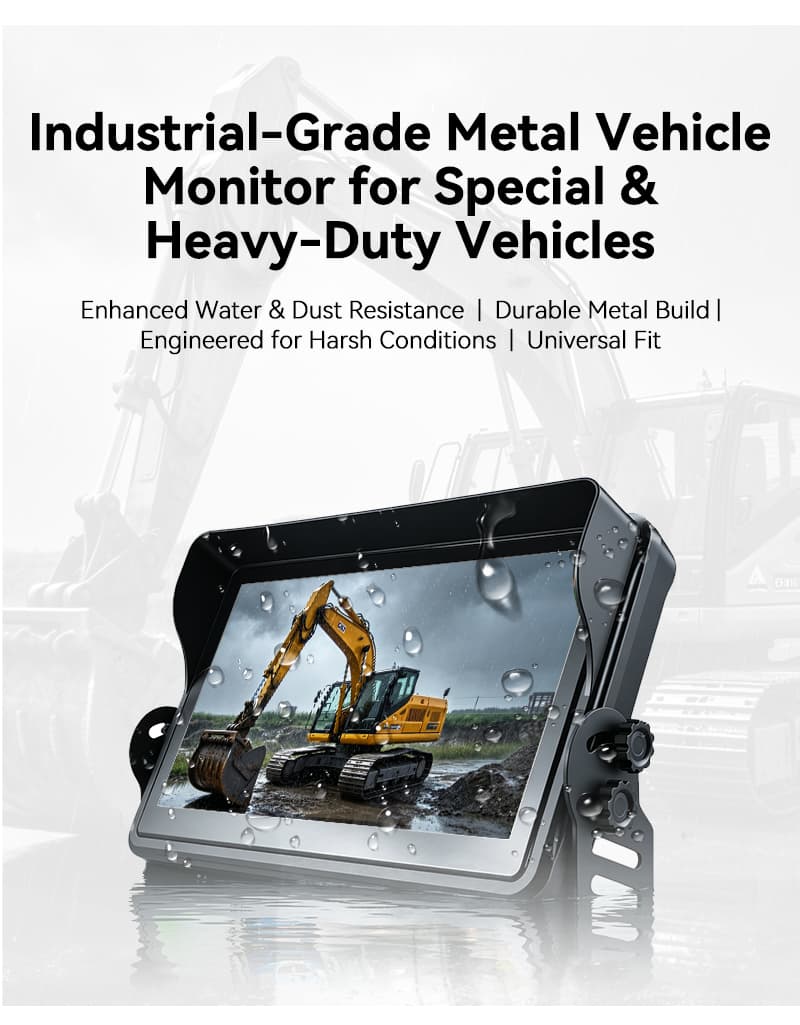

The industrial-grade metal housing is fully waterproof, dustproof, shockproof, and vibration-resistant. It operates on a wide 9-36V DC input with reverse polarity protection, overload protection, short circuit protection, and under-voltage protection. Whether your fleet operates in mining sites, construction zones, or extreme weather conditions, this monitor is engineered to perform reliably.

2.Stay connected and in control

With 4G LTE and WiFi hotspot (AP/STA mode), you can access live video, historical playback, remote snapshot, and two-way audio from your phone, PC, or tablet — anytime, anywhere. The system supports OTA firmware upgrades, TTS text dispatch, media upload and retrieval, and multi-IP reporting (up to 8 streams). Seamless cloud integration is available with Wialon, RedGPS, and JT/T808/JT/T1076 compliant fleet management platforms.

3.Record with confidence

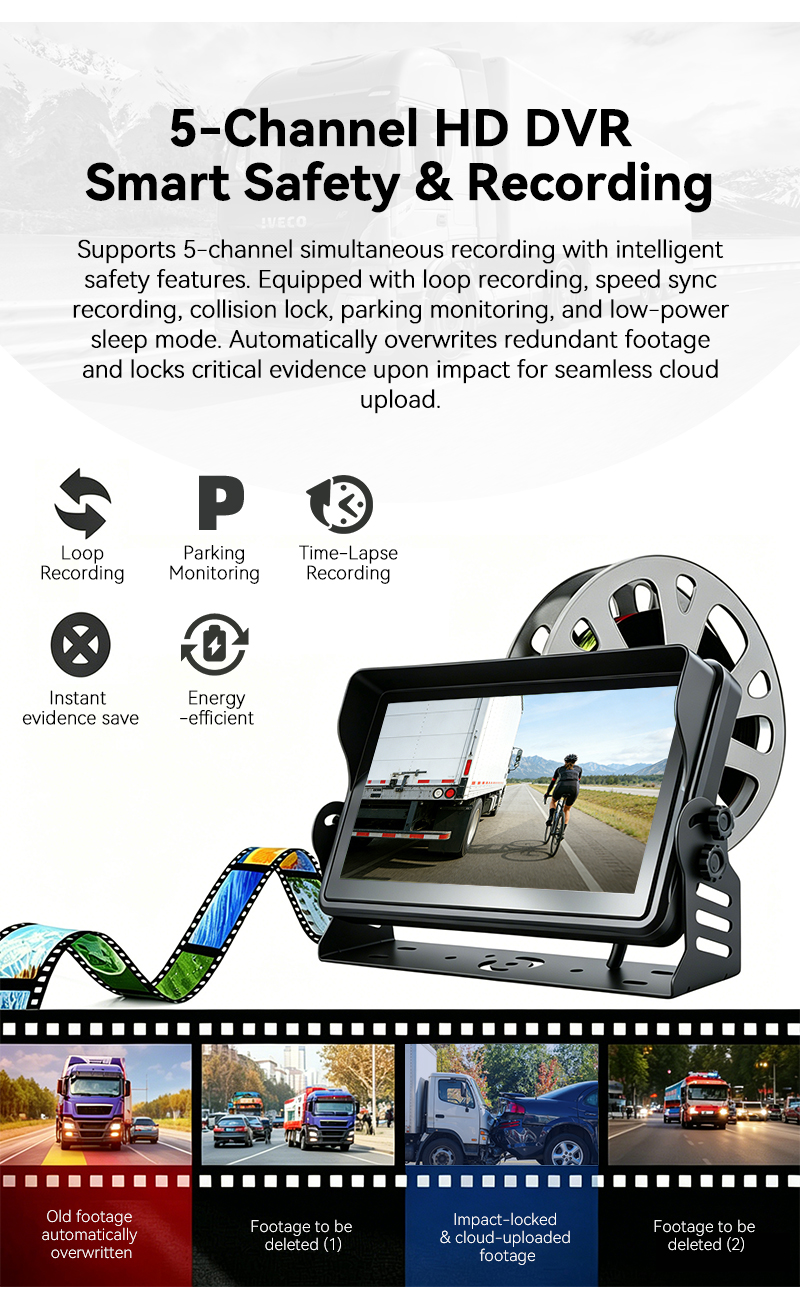

Powered by a dual-core processor and H.265 video compression, the system reduces storage space and bandwidth usage by 50% compared to H.264 while maintaining crystal-clear 1080P quality. Data is secured on triple storage options: SD card (up to 1TB, Class 10/U3 required), optional MSATA SSD, and USB external drive. Additional features include:

• Loop recording automatically overwrites old footage when storage is full

• Speed sync recording links recording speed with vehicle speed

• Collision-activated evidence lock protects critical footage from being overwritten

• 24/7 parking surveillance with low-power sleep mode and remote wake up

• Built-in backup battery provides 10-15 minutes of emergency recording after vehicle power cut

4.Pinpoint your vehicles with precision

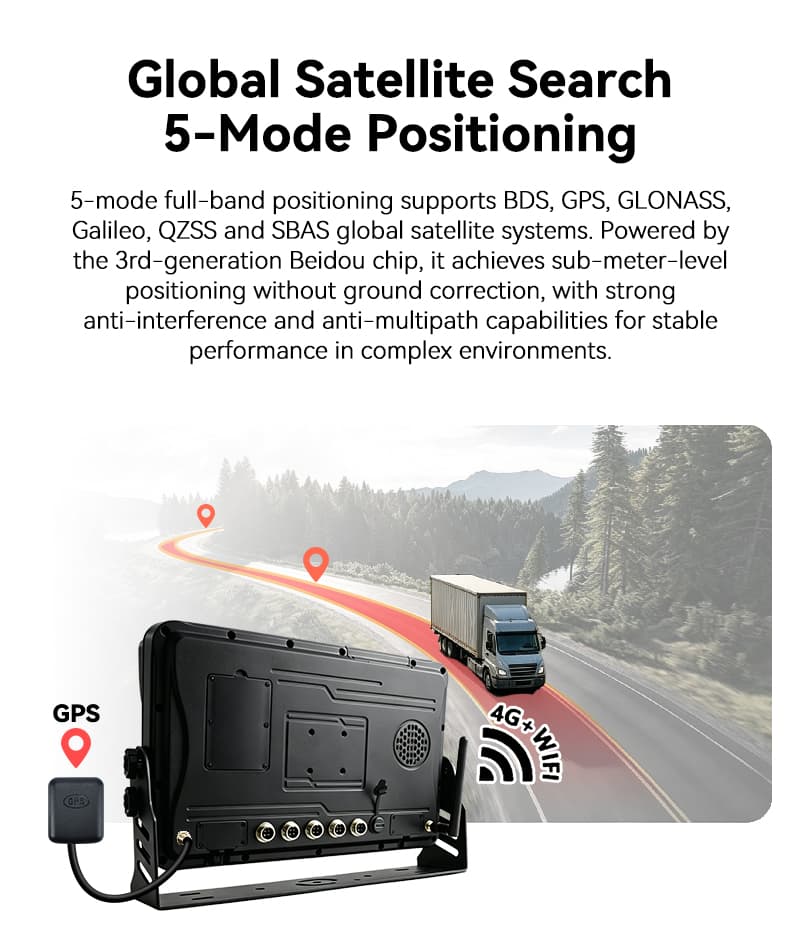

The 5-mode GNSS positioning supports GPS, GLONASS, BeiDou, Galileo, and QZSS simultaneously. Powered by the 3rd-generation BeiDou chip, it achieves sub-meter accuracy without ground correction. Strong anti-interference and anti-multi path capabilities ensure stable performance even in tunnels, urban canyons, and complex environments.

5.Expand functionality with rich interfaces

The system comes equipped with dual RS232 ports, allowing seamless connection to a wide range of sensors and peripherals:

• Fuel level sensor for real-time fuel monitoring

• Cargo temperature and humidity sensor for refrigerated trucks

• TPMS (Tire Pressure Monitoring System) for tire safety

• Passenger counter for public transit operations

• RFID reader for driver identification and access control

Additional interfaces include UART serial port, 5-way alarm inputs (ACC, left turn, right turn, general input, SOS), and 3 low-level outputs for remote fuel cut or power off via relay (optional).

6.Emergency response at your fingertips

The one-touch SOS emergency alarm instantly sends cloud notifications to your fleet manager, accompanied by audible and visual alarms on the device. With simultaneous multi-IP reporting (up to 8 streams), emergency alerts reach multiple recipients at the same time, ensuring rapid response when it matters most.

The system also supports smart alerts for harsh driving behaviors, including:

• Rapid acceleration alert

• Harsh braking alert

• Sharp turn alert

• Collision alert

• Over-speed alert (configurable)

7.Additional technical features

• Operating system: Linux 4.19.73 for stable and reliable performance

• Video format: AHD 1080P/720P, PAL, H.264/H.265 compression

• Language support: Switchable between Chinese and English interfaces

• Timed power control: Supports scheduled power on/off and delayed shutdown

• Low-power mode: Automatically enters sleep mode after ACC off, can be remotely woken

• Audio: Two-way talk and listen-in for driver- dispatcher communication

• Power management: Adaptive wide voltage input with comprehensive circuit protection

Why choose this system?

✅ One device replaces multiple systems — integrates DVR, AI safety, GPS tracking, and cloud reporting
✅ Reduces accident rates with real-time driver alerts and behavior monitoring
✅ Lowers operational costs through optimized driving behavior and fuel monitoring
✅ Provides legal protection with collision-locked evidence and continuous recording
✅ Scales with your fleet — from 1 vehicle to 1,000+

Ready to upgrade your fleet safety?

Contact us for bulk pricing, OEM/ODM customization, sample testing, or technical support.
