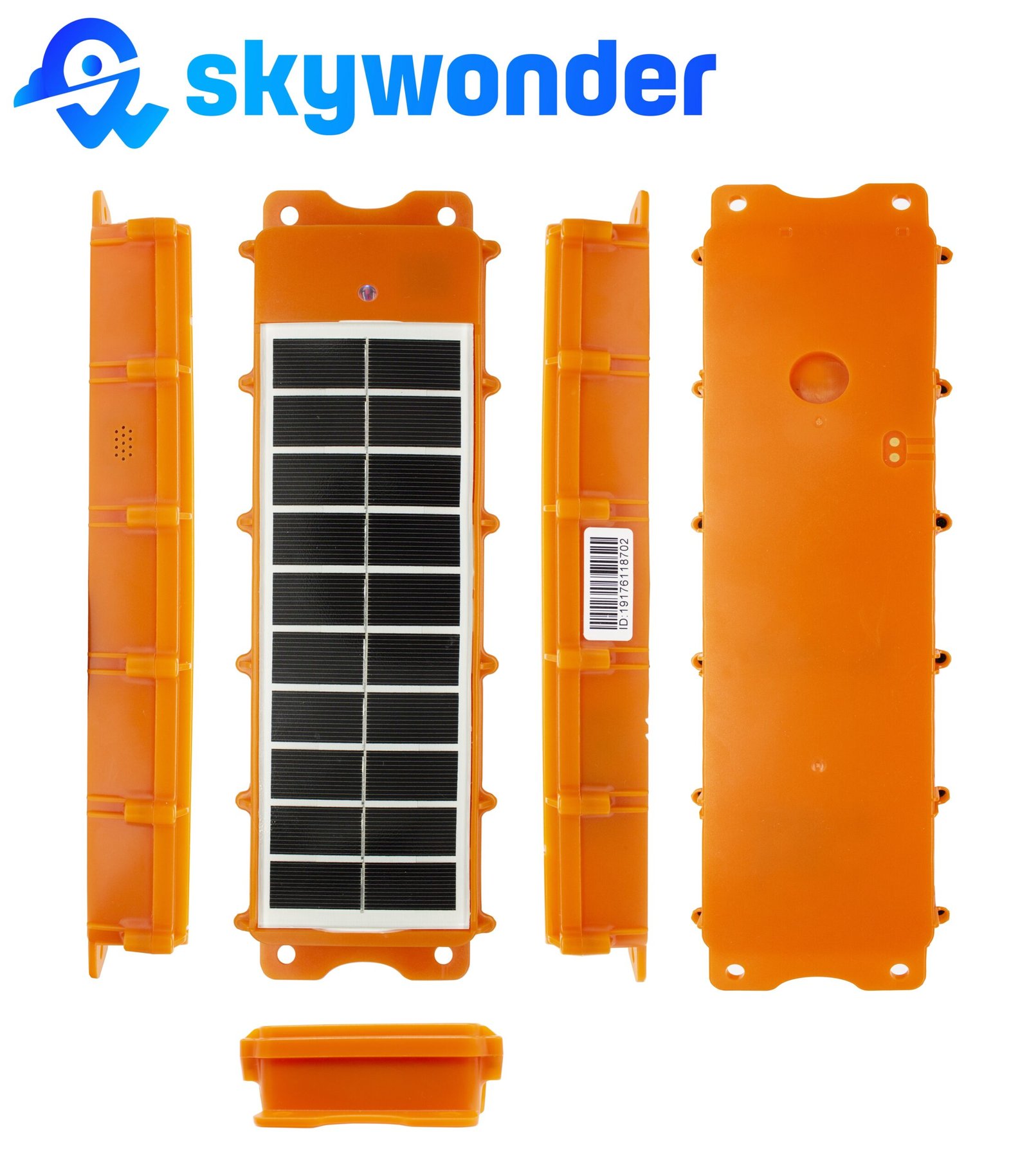

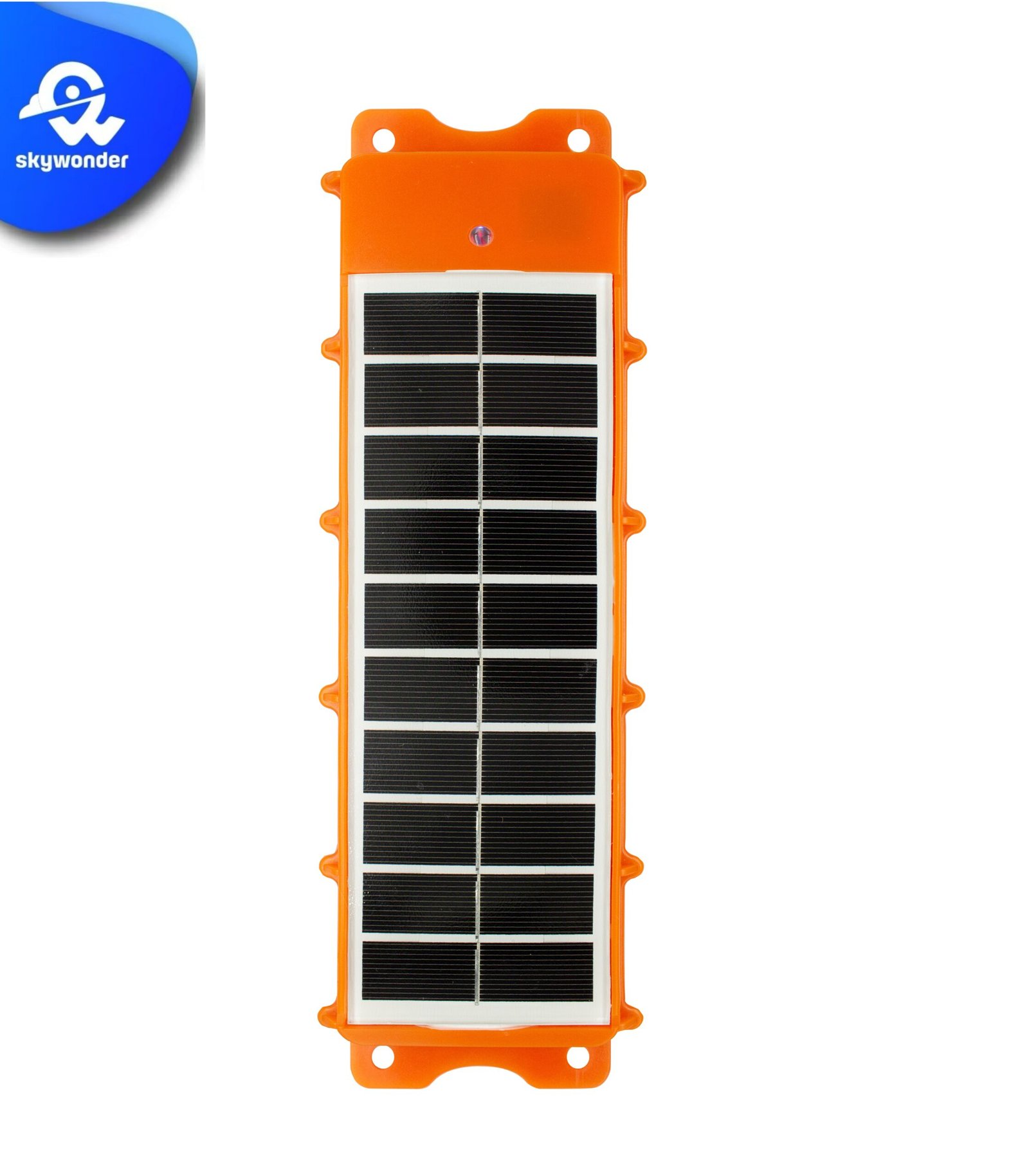

Y8 4G gps tracker Main view
Y8 4G gps tracker Main view

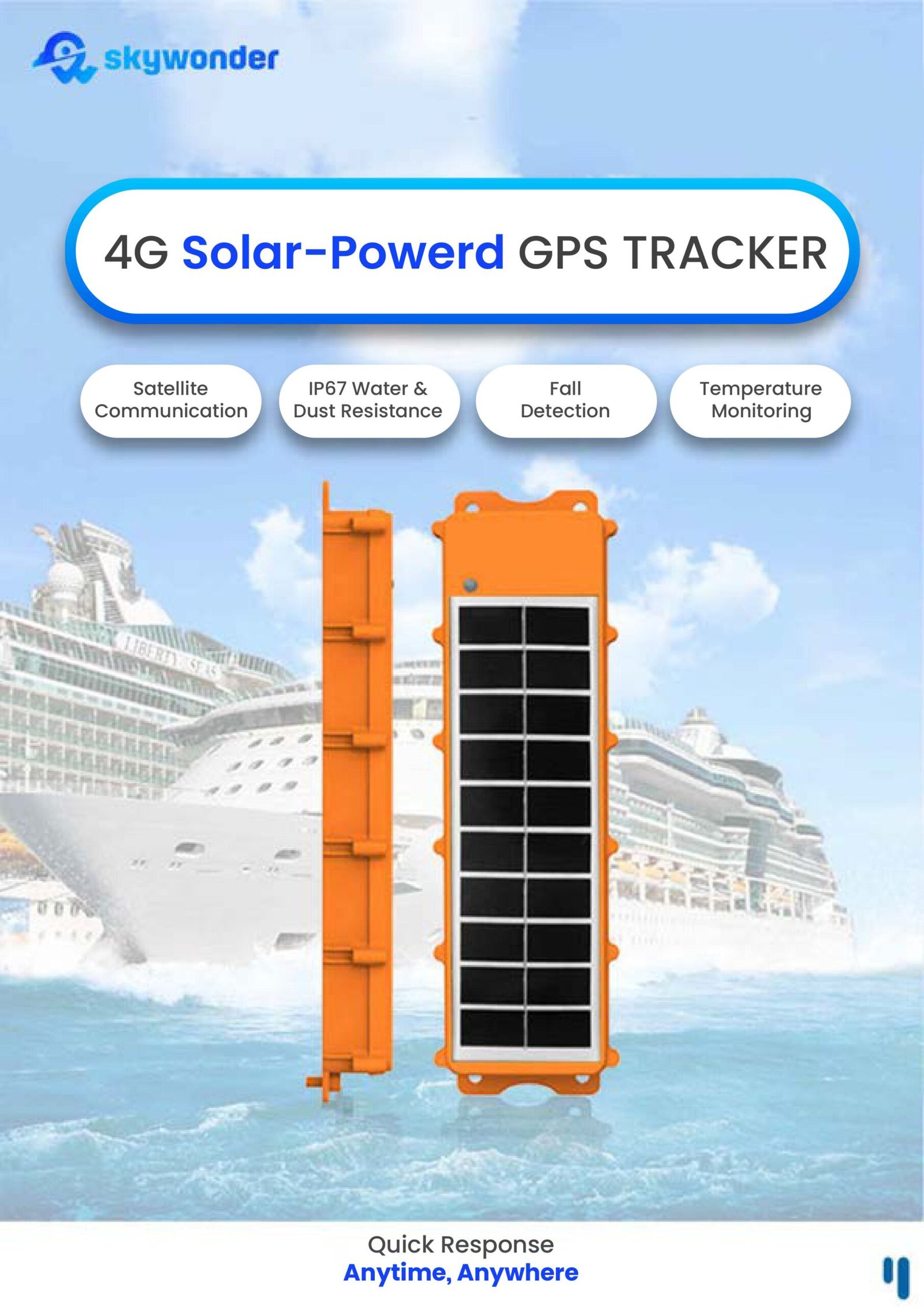

Y8 4G gps tracker

Y8 is a 4G full netcom logistics and transportation positioning terminal, which is carefully built for the Internet of Vehicles, integrates 4G full netcom wireless communication technology, GPS/BDS satellite navigation and positioning technology, and iridium satellite communication technology. The terminal is designed with an industrial-grade highly integrated all-in antenna, and the equipment has a built-in 3-axis sensor, which can intelligently save electricity and wakeup. It has the functions of vibration alarm, overspeed alarm, overboard detection, SOS emergency rescue, etc. It can set three modes to meet various application scenarios of customers, and users can send instructions to switch working modes. With the global positioning service platform, you can find the location of the equipment anytime and anywhere.

Order on WhatsApp
Categories , ,

Description

Y8 is a 4G full netcom logistics and transportation positioning terminal, which is carefully built for the Internet of Vehicles, integrates 4G full netcom wireless communication technology, GPS/BDS satellite navigation and positioning technology, and iridium satellite communication technology. The terminal is designed with an industrial-grade highly integrated all-in antenna, and the equipment has a built-in 3-axis sensor, which can intelligently save electricity and wakeup. It has the functions of vibration alarm, overspeed alarm, overboard detection, SOS emergency rescue, etc. It can set three modes to meet various application scenarios of customers, and users can send instructions to switch working modes. With the global positioning service platform, you can find the location of the equipment anytime and anywhere.

Features

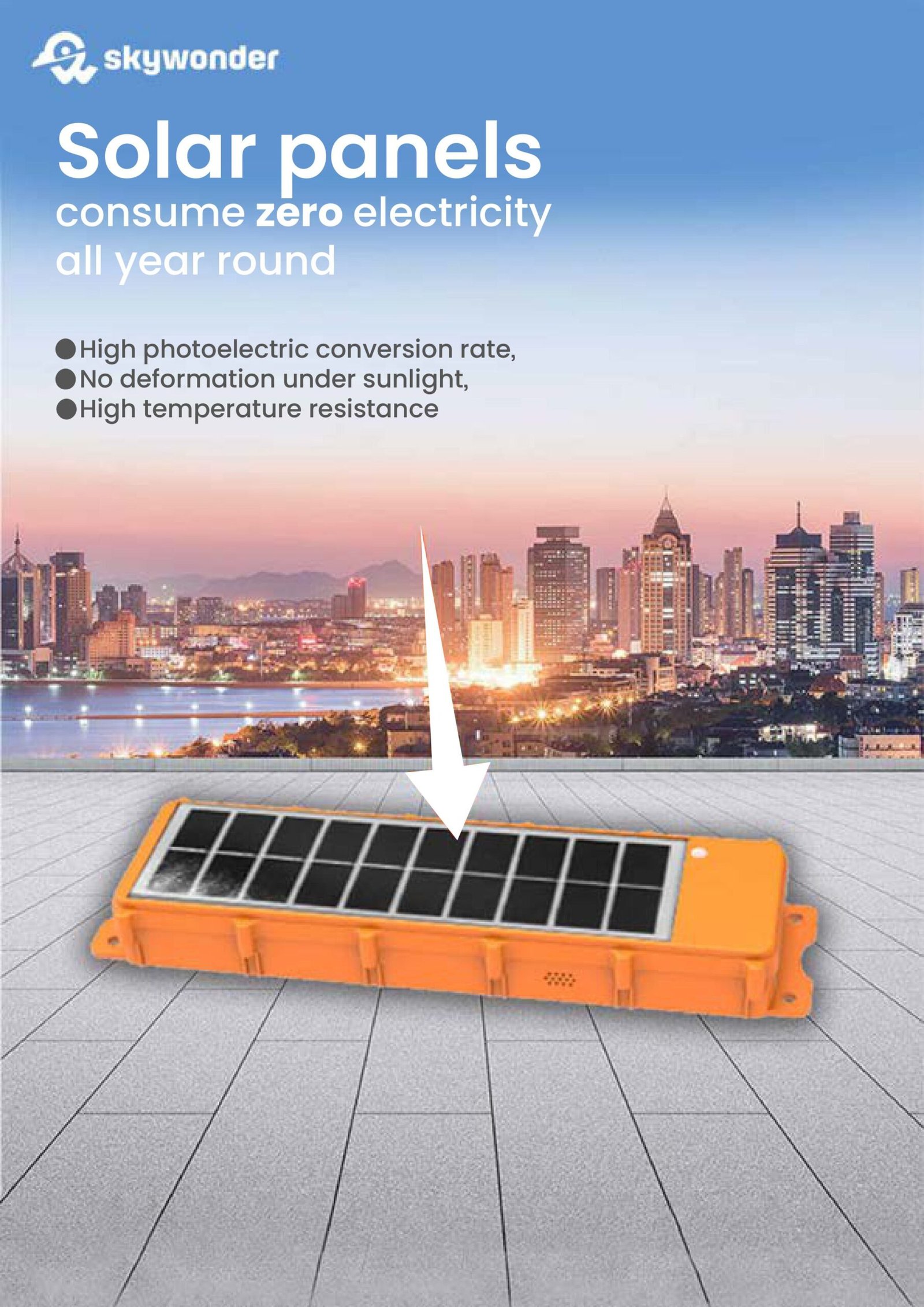

  • Solar Charging: extending the battery life of the device.
  • Vibration Alert: real-time reminder of abnormal status.

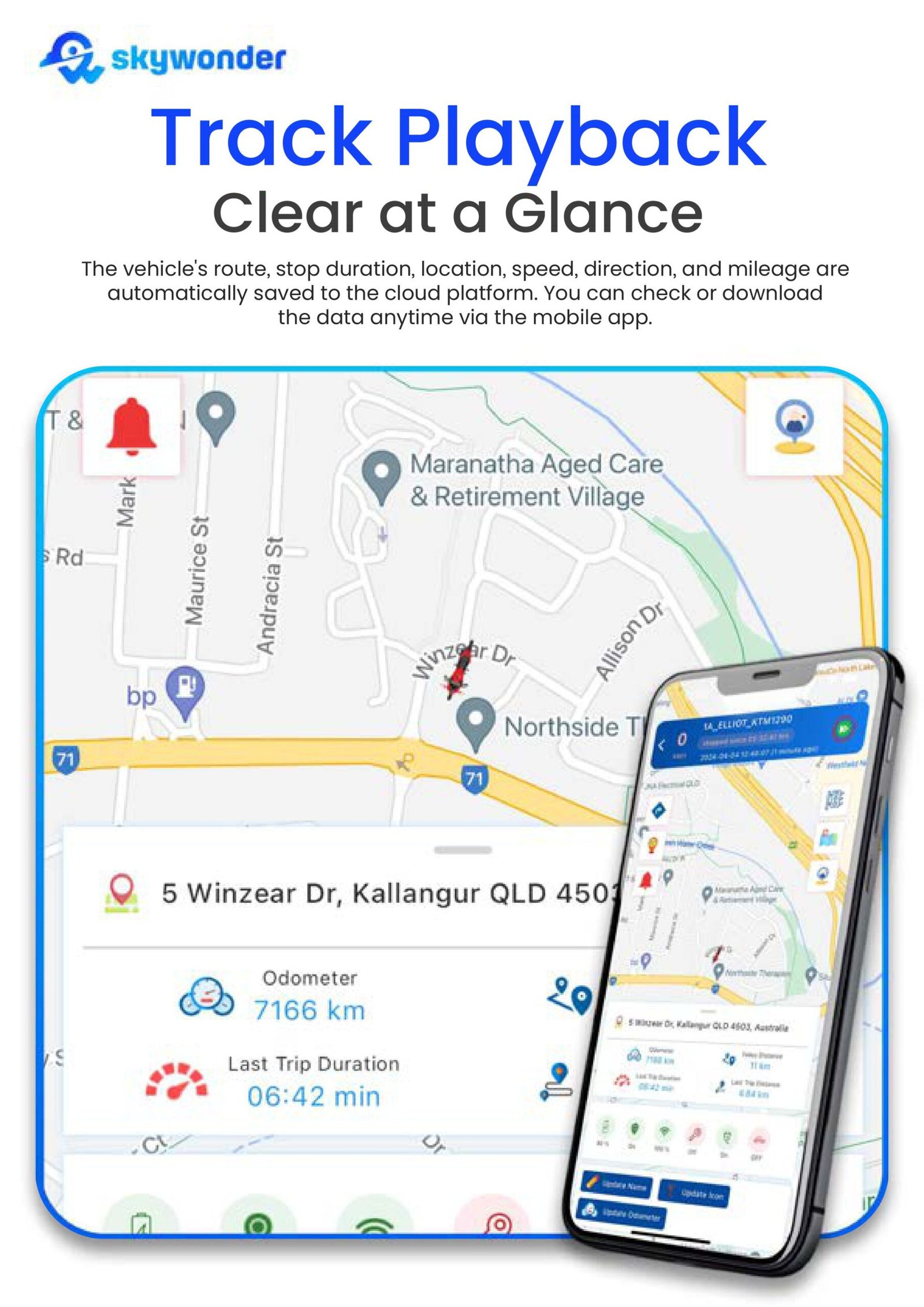

  • Historical Track Recording: storing historical driving routes.
  • Emergency Alarm: one-click triggering of help signal.
  • Geo-fencing: electronic fence, automatic alarm when exceeding the set range.

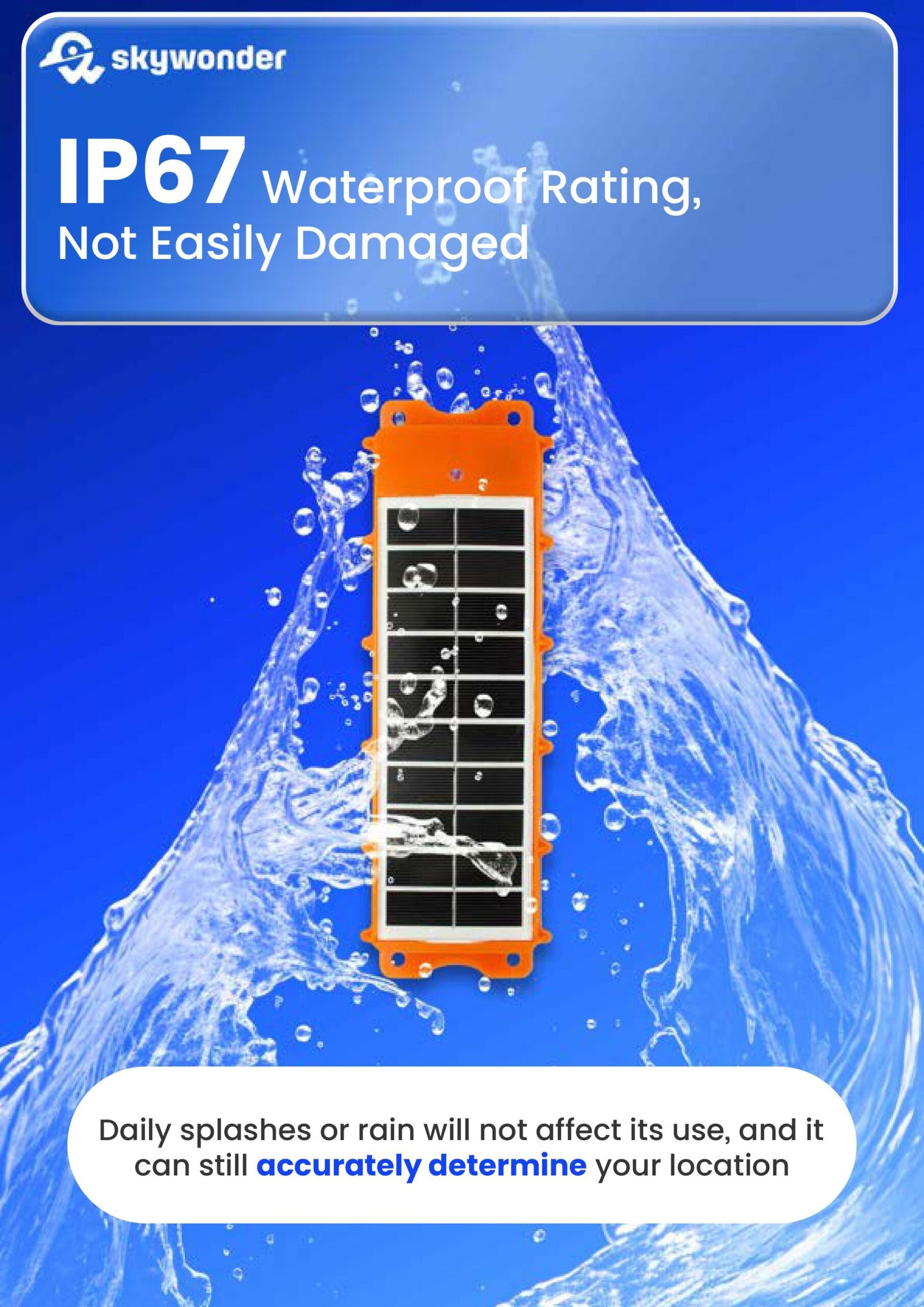

  • IP67 Waterproof: dustproof and waterproof, can be immersed for a short time.
  • Satellite Communication: Satellite communication, positioning can still be achieved without network.
  • Anti-Tamper Protection: illegal disassembly triggers alarm.
  • Water Immersion Detection: automatic alarm when encountering water.

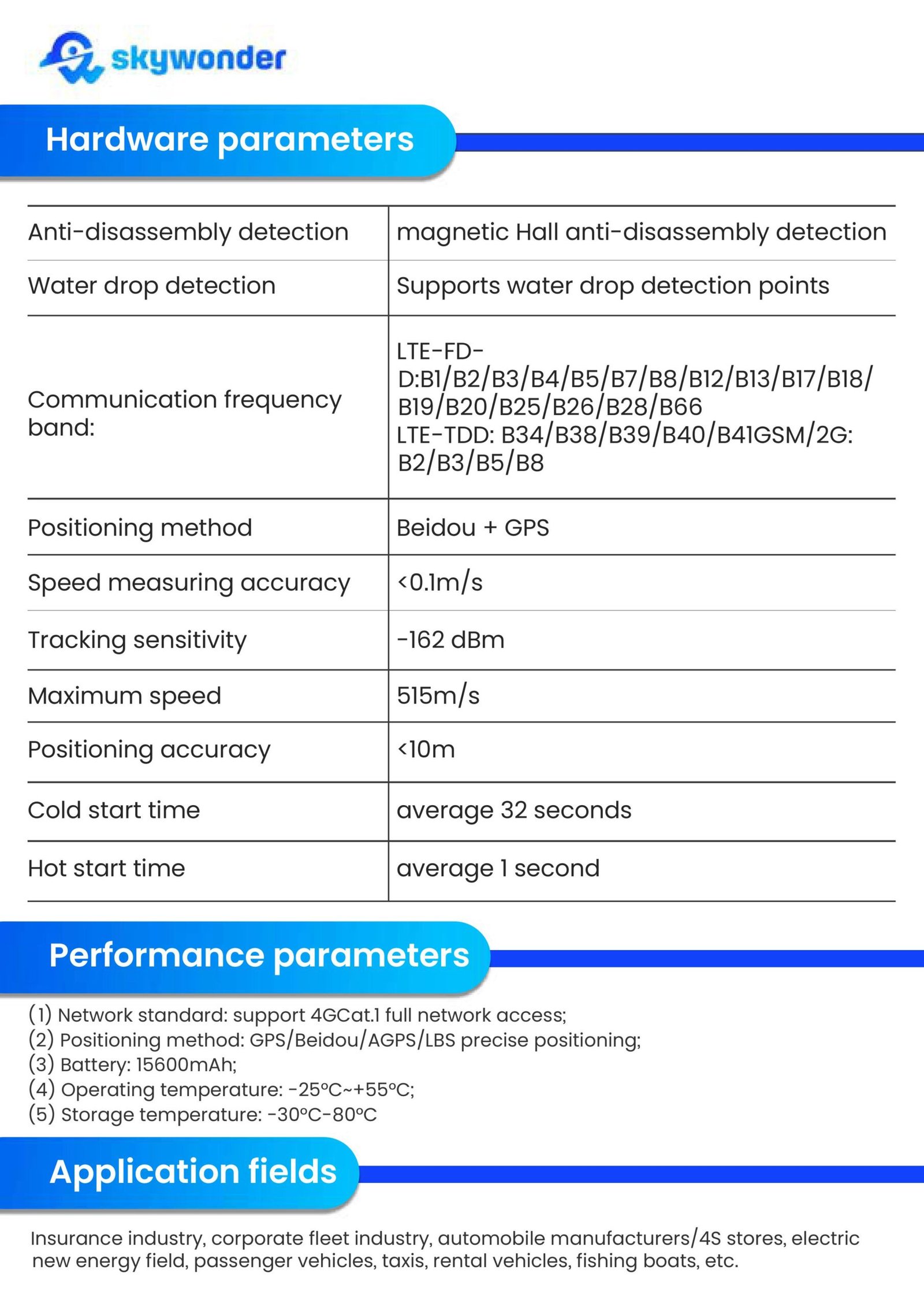

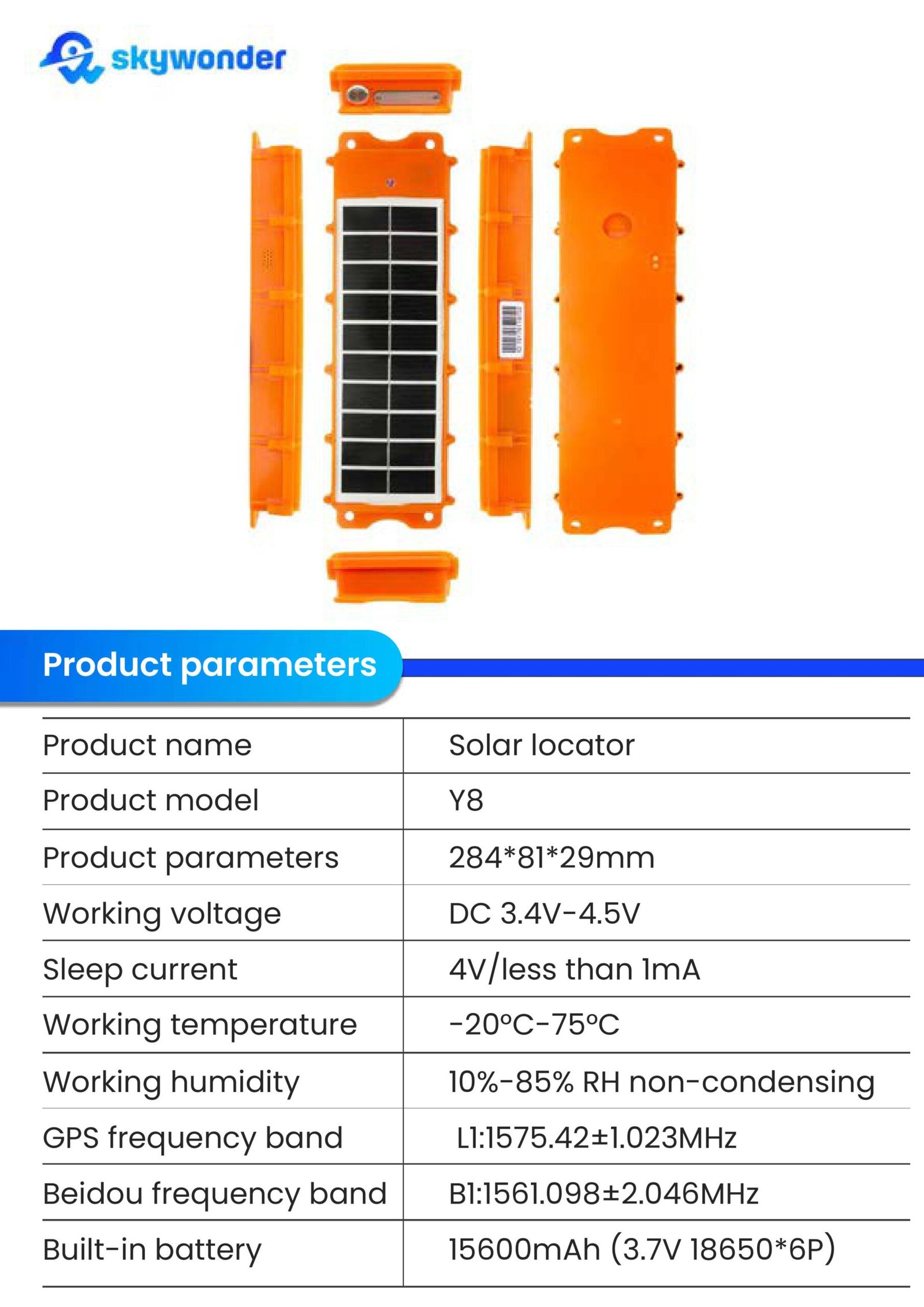

Specifications



Function name



Project function description





electrical specification

power supply modeBattery powered
Operating voltage rangeDC 3.4V – 4.5V
operational current4V/ average 68mA
Dormant current4V/ average 200uA
Built-in battery capacity15600mAh (3.7V 18650*6P)




solar panel

open-circuit voltage6V
operating voltage5V (±0.3V)
Short circuit current440MA (±8%)
Maximum current: 400MA400MA
Cell efficiency23.5%
Environmental characteristicsoperating temperature range-20℃ – 60℃
Storage temperature range-30℃ – 80℃
Operating humidity range10%-85% RH does not condense.


4G

communicatio n characteristics

Sim cardMicro SIM card
Communication band (optional communication band)

LTE-FDD:B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

Communication antennabuilt-in aerial
Antenna specificationFPC antenna




Iridium satellite

frequency1616 ～ 1626.5 MHz
Maximum mobile transmission information340 bytes
Maximum mobile reception information270 bytes
duplex modeTDD (time domain duplex)
aerialBuilt-in ceramic active antenna size: 25*25*4
















GPS/BD

positioning characteristics

location modeBeidou +GPS
Cold start timeAverage 32 seconds
Hot start timeAverage 1 second
Tracking sensitivity-162 dBm
Capture sensitivity-148 dBm
Positioning antennabuilt-in aerial
Antenna specification25mm * 25mm * 4mm
GPS frequency bandL1: 1575.42±1.023MHz
Beidou frequency bandB1: 1561.098±2.046MHz
Number of satellite channels32
positioning accuracy<10m（1σ）
Timing accuracy<30ns（1σ）
Velocity measurement accuracy<0.1m/s（1σ）
Maximum acceleration4g
top speed515m/s
Maximum height18000m


Shape specification

Host size (length, width and height)283.9*81.2*28.6mm
Shell materialPC plastic
ingress protectionIP67
Main engine weightAbout 650 grams
