GPS Trackers Manufacturer and Supplier

GT33 ID Card Tracker

  • GPS+BDS+AGPS+LBS Multi-Location;
  • Support electronic fence function, the user through the platform / APP virtual electronic fence, when the device in and out of the fence can be recognized by the platform and send out an alarm;
  • Alarm SMS/calls can be sent to the guardianship number in the event of an alarm, and the alarm is uploaded to the platform at the same time;
  • The terminal adopts industrial-grade high-stability GPRS module from well-known manufacturers, with built-in GSM high-sensitivity antenna, supports TCP/IP data transmission and domain name/IP address to connect to the server;
  • Built-in high-capacity memory chip, support offline state data storage, blind area data complementary transmission; when the pet in the wireless signal is weak or serious interference in the place, the pet walking data temporarily stored in the FLASH, when the wireless signal back to normal, can complement the transmission of these data, to achieve the data does not miss;
  • Built-in 3-axis acceleration sensor, fusion of accurate acceleration algorithm, real-time access to the pet’s current posture and other situation judgment;
  • High sensitivity GPS/BDS dual-star positioning module, anti-jamming ceramic antenna to achieve more stable star search signal, support AGPS fast positioning tracking, synchronous timing;
  • Support online remote upgrade, remote configuration of product parameters;
  • Thehistory track platform is retained for 180 days;
  • Compact and lightweight, easy to carry for the elderly and children, real-time view of the location, 24-hour worry-free care.

Description

GT33 ID Card Tracker is a 4G all-network wireless positioning terminal for personnel/individuals, integrating 4G all-network wireless communication technology and GPS/BDS satellite navigation and positioning technology, the terminal adopts industrial grade high integration degree fully built-in antenna design, the device has built-in 3-axis sensors, intelligent power-saving wake-up work. With real-time positioning, vibration alarm, emergency alarm, naming and positioning functions. Three modes can be set to meet the customer’s various application scenarios, the user can send commands to switch the working mode. With the global positioning service platform, the location of the device can be queried anytime and anywhere.

Features

  • GPS+BDS+AGPS+LBS Multi-Location;
  • Support electronic fence function, the user through the platform / APP virtual electronic fence, when the device in and out of the fence can be recognized by the platform and send out an alarm;
  • Alarm SMS/calls can be sent to the guardianship number in the event of an alarm, and the alarm is uploaded to the platform at the same time;
  • The terminal adopts industrial-grade high-stability GPRS module from well-known manufacturers, with built-in GSM high-sensitivity antenna, supports TCP/IP data transmission and domain name/IP address to connect to the server;
  • Built-in high-capacity memory chip, support offline state data storage, blind area data complementary transmission; when the pet in the wireless signal is weak or serious interference in the place, the pet walking data temporarily stored in the FLASH, when the wireless signal back to normal, can complement the transmission of these data, to achieve the data does not miss;
  • Built-in 3-axis acceleration sensor, fusion of accurate acceleration algorithm, real-time access to the pet’s current posture and other situation judgment;
  • High sensitivity GPS/BDS dual-star positioning module, anti-jamming ceramic antenna to achieve more stable star search signal, support AGPS fast positioning tracking, synchronous timing;
  • Support online remote upgrade, remote configuration of product parameters;
  • Thehistory track platform is retained for 180 days;
  • Compact and lightweight, easy to carry for the elderly and children, real-time view of the location, 24-hour worry-free care.

Specifications

Function NameProject Functional Description
Electrical CharacteristicsPower supply methodBattery powered
Operating Voltage RangeDC 3.4V – 4.5V
Operating Status Voltage/Current4V/60mA Average
Standby Voltage/Current4V/5mA  Average
Built-in battery capacity700 mAh (3.7V polymer battery)
Environmental CharacterizationOperating Temperature Range-20℃ – 75℃
Storage temperature range-30℃ – 80℃
Operating humidity range10%-85% RH Non-condensing
Communication CharacteristicsCommunication module brand/chip typeSIMCOM A7680C
Communications bandLTE/4GLTE-FDD:B1/B3/B5/B8
LTE-TDD:B34/B38/B39/B40/B41
SIM cardNona SIM Card
Communications antennaBuilt-in FPC antenna
GPS/BD positioning characteristicsPositioning module brand/chip typeAT6558R
Positioning methodBDS/GPS/GLONASS/LBS
Cold start timeAverage 32 seconds
Hot start timeAverage 1 second
Tracking sensitivity-162 dBm
AntennaeBuilt-in antenna
Antenna Specifications5mm×5mm×0.9mm
GPS frequency bandL1:  1575.42±1.023MHz
Beidou frequency bandB1:  1561.098±2.046MHz
Number of satellite channels64
Position accuracy<2m(1σ)
Timing accuracy<30ns(1σ)
Velocimetry accuracy<0.1m/s(1σ)
External InterfaceMicro usb port1 way
SOS button1 way

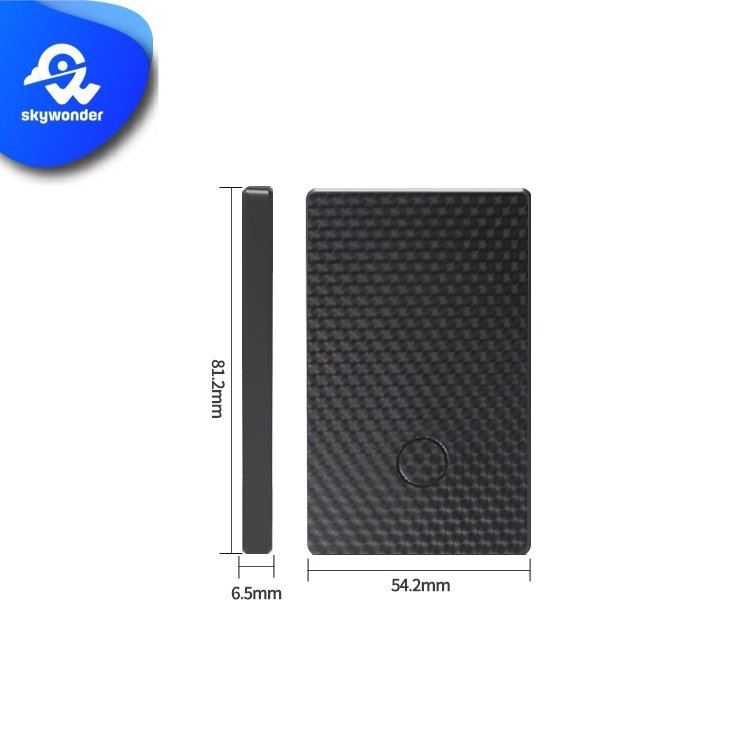

Form FactorDimensions of mainframe (LWH)81.2mm *54.2mm *6.5mm
Housing MaterialABS plastic
Main body weight40 grams
