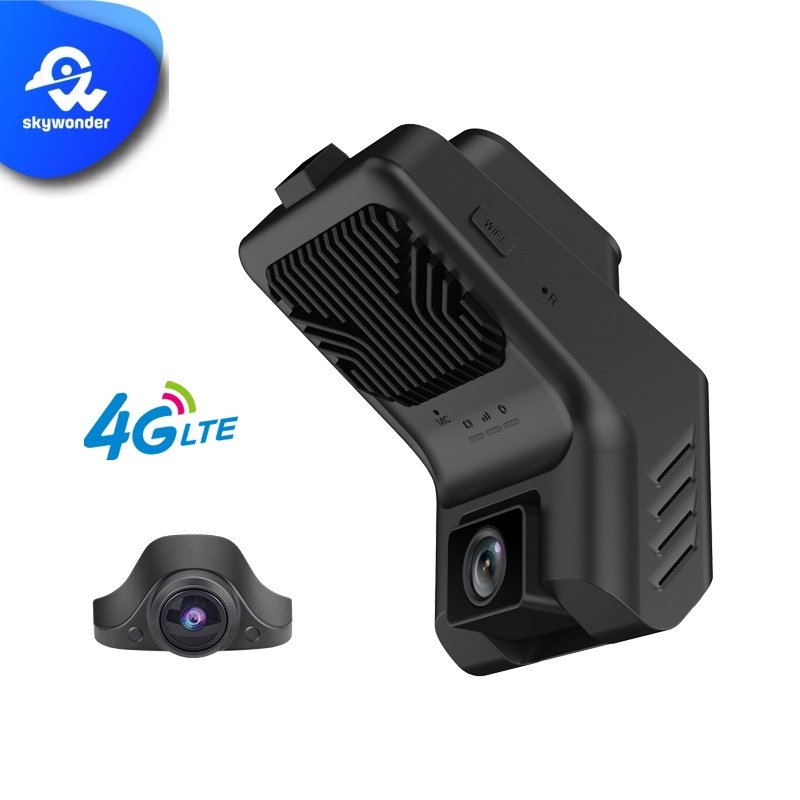

D9 4G Dashcam

  • Cut off oil and power：APP Remote control the oil circuit, lock the circuit, and ensure absolute safety of the car
  • Loop Recording：Every 1/3/5 min loop recording, it willauto overvrite the oldest files when the memory card is about full.
  • G-Sensor：Automatically locks and saves keyvideos in the event of a sudden collision to ensure that accident evidence is not overwritten.
  • Advanced Driving Assistance：supports FCWS, LDWS, PCWS, HMW, andFVSA functions
  • Driver Monitoring System：Real-time detection of smoking, yawning.closing eyes, distracted driving, camera occlusion and sight direction to ensure driving safety.
  • WiFi hotspot：You can connect to the mobile network or WiFi hotspot through your mobile phone toview the dashcam video files in the memory card in real time.
Order on WhatsApp
Category

Description

D9 has three high-definition cameras (front camera 1080P + 1080P infrared night vision in the car + rear camera 720P), uses H.265/H.264 encoding to save storage and traffic, supports WiFi hotspots and GPS/Beidou dual-mode positioning. it integrates Al functions (ADAS driving assistance, DMS driver status monitoring), built-in SOS emergency button, optional oil and electricity cut-off control, supports 512GB extended storage and super capacitor power-off protection, providing all-round intelligent protection for driving safety.

Features

  • Cut off oil and power：APP Remote control the oil circuit, lock the circuit, and ensure absolute safety of the car
  • Loop Recording：Every 1/3/5 min loop recording, it willauto overvrite the oldest files when the memory card is about full.
  • G-Sensor：Automatically locks and saves keyvideos in the event of a sudden collision to ensure that accident evidence is not overwritten.
  • Advanced Driving Assistance：supports FCWS, LDWS, PCWS, HMW, andFVSA functions
  • Driver Monitoring System：Real-time detection of smoking, yawning.closing eyes, distracted driving, camera occlusion and sight direction to ensure driving safety.
  • WiFi hotspot：You can connect to the mobile network or WiFi hotspot through your mobile phone toview the dashcam video files in the memory card in real time.

Specifications

Host specificationsDetails
model no.G9S(for small car) and G9T ( for truck)
chipSSC8836Q
4g moduleEC200A series from quectel (CAT-4)
operation systemlinux system
memoryRAM2G and ROM1GB
4g network bandasia band: FDD_LTE:B1/B3/B5/B7/B8/B20/B28
TDD:B38/B40/B41
WCDMA:B1/B5/B8 GSM:B3/B8
for latin ameria, au etc:
FDD_LTE:B1,B2,B3,B4,B5,B7,B8,B28
TDD:B40
WCDMA:B1/B2/B5/B8     GSM:B2,B3,B5,B8
for north america:
FDD_LTE:B2,B4,B5,B12,B13,B14,B66,B71
4g moduleCAT-4 4g module (download speed is 150mbps, upload speed is 50mbps)
gps trackingbeidou+ external gps module
location accuracyless than 10 meters
3 channels record
(4th cam is optional if need)		front is 1080p, view is 135 degree
cabin is 1080p, view is 110 degree
left camera is 720p, view is 120 degree
right camera is 720p , view 120 degree
video formatts h.264/265
main stream1080/720/D1/CIF (can set them remotely)
sub stream1080/720/D1/CIF (can set them remotely)
photo formatjpeg
max tf card512g with class 10 or above ( the video file in the tf card is encryted)
power input9-36v
functionwifi function (2.4g/5.8g)
g-sensor
loop recording
adas function( LDWS, FVWS, PDWS,FCWS)
DMS ( smoking, yawning, eye close, distracted driving, block camera, cover camera, and eye classes)
io output: can connect the relay to cut the oil or power remotely to the vehicle
sos alarm: can support to connect other sensor to detect the action and send alarm such as door open…
remote monitor on the cmsv6 platform when acc off
interface1x RS232
1x SOS alarm
1x IO output
tracking platformcmsv6/ wialon/ other 3rd platform that can use the jt808/1078/1076 protocol
packgae content1x g9 dash cam
1x power cable
1x external gps antenna
1x rear camera
1x rear camera cable with length 5 meters
1x install bracket
1x user maual
package carton details18pcs/carton
carton weight: 23.5kg
carton size:39x37x57cm
