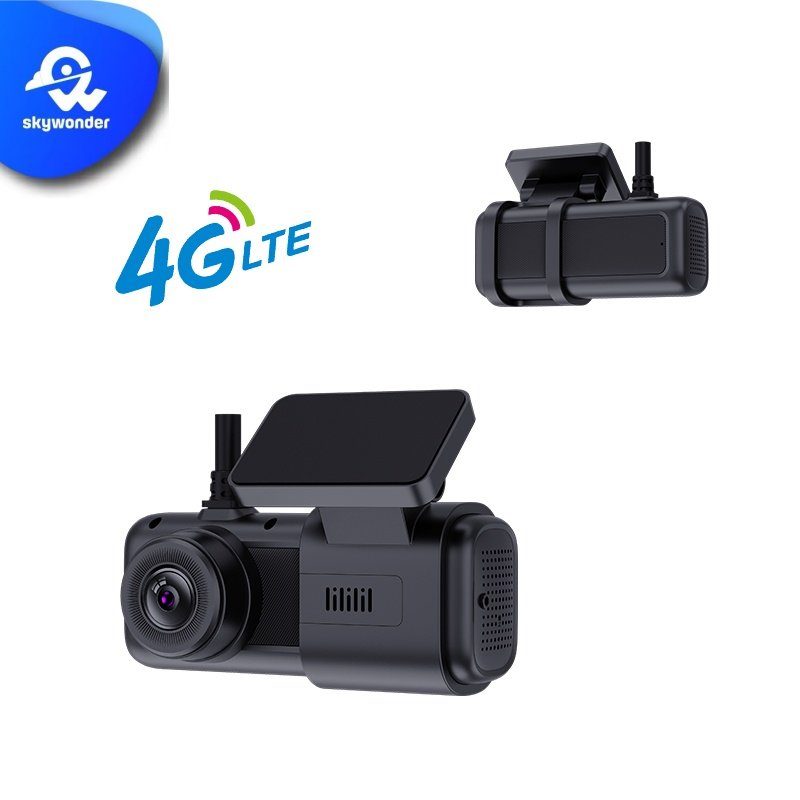

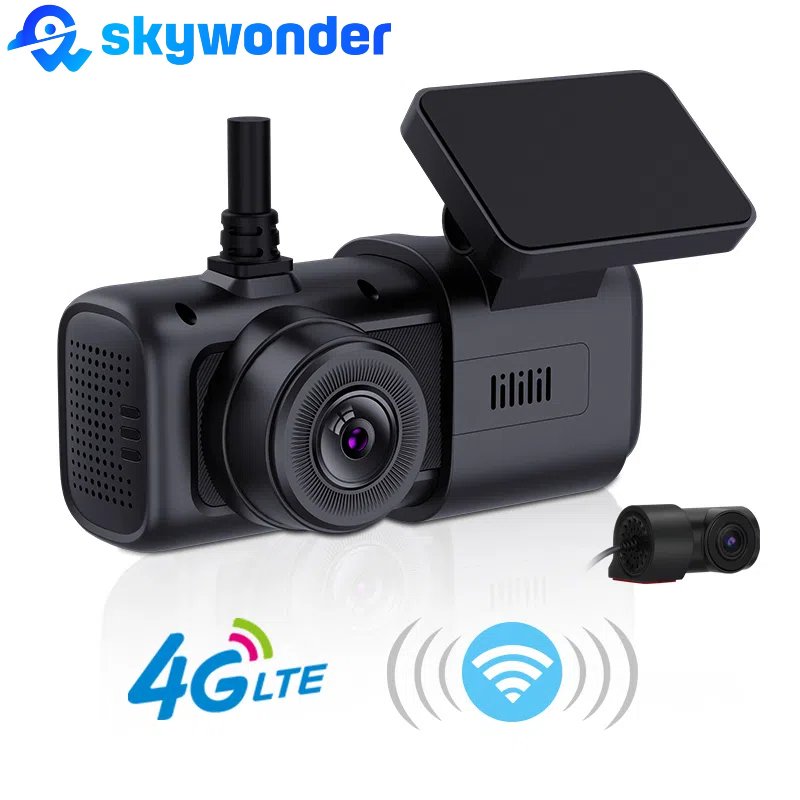

D2 4G Dashcam

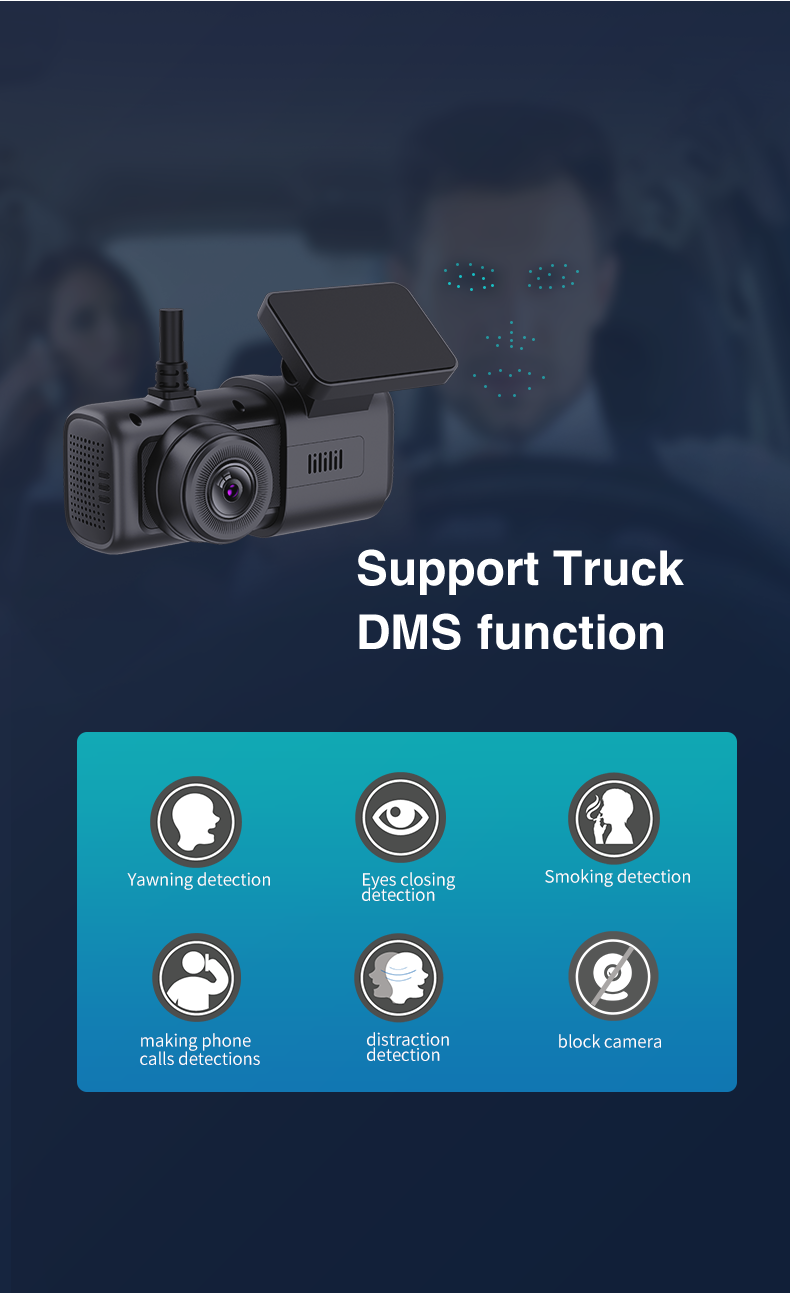

  • DMS function:Yawning,Eyes closing, Smoking,making phone calls,distraction,block camera detection.
  • Loop Recording：Every1/3/5 min loop recording, it will auto overvrite the oldest files when thememory card is about full.
  • G-Sensor：Automatically locks and saves key videosin the event of a sudden collision to ensure that accident evidence is not overwritten.

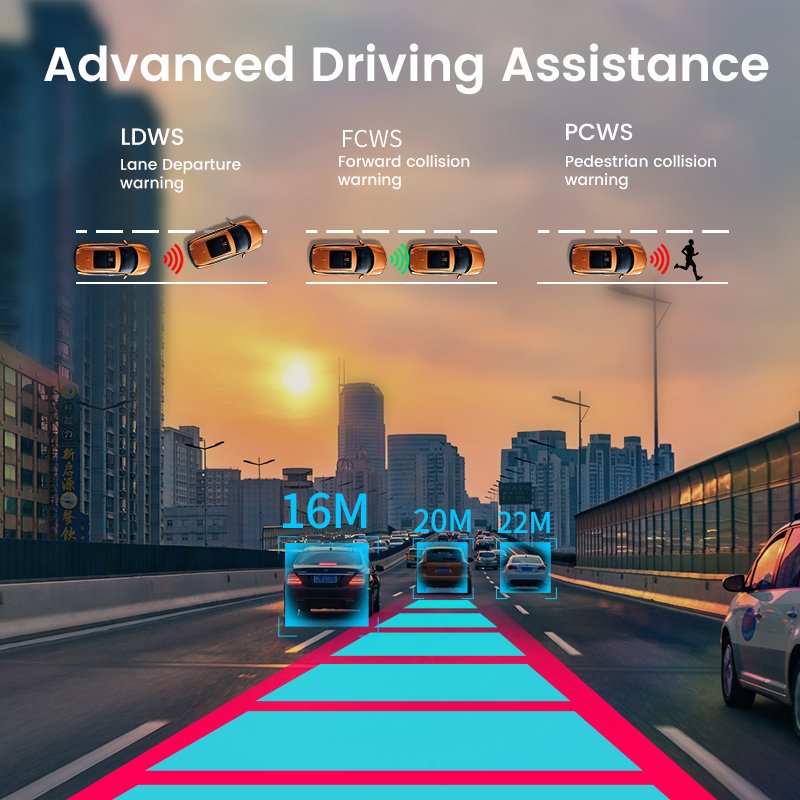

  • Advanced Driving Assistance：Lane Departure warning、Forward collisionwarning,Pedestrian collision warning.
  • Delay Shut Down：The motherboard is equipped with dualsuper capacitors to ensure stable operation during sudden power outages, and also supports delayed shutdown after parking.

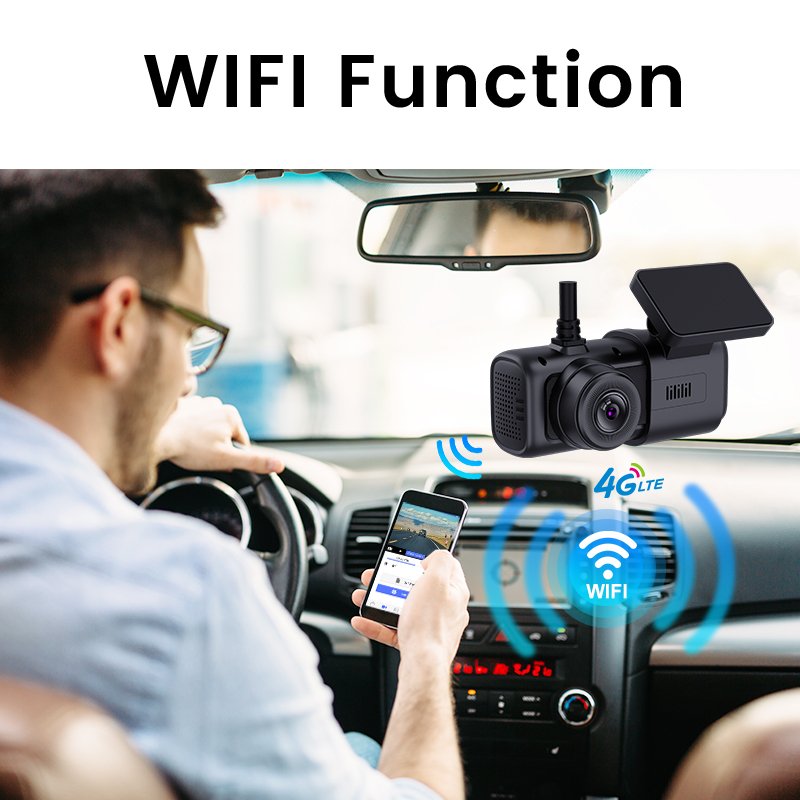

  • WiFi hotspot：You can connect to the mobile network orWiFi hotspot through your mobile phone to view the dashcam video files in the memory card in real time.
Order on WhatsApp
Category

Description

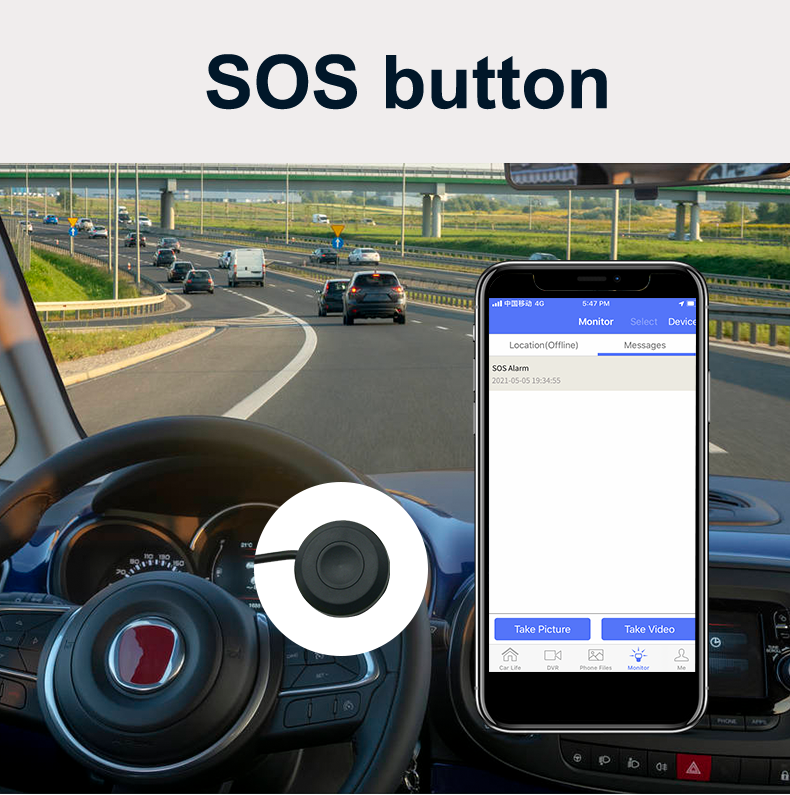

D2 adopts advanced H.265/H,264 video encoding, has a 6-axis sensor (gravity sensor +gyroscope), supports Al functions (ADAS driving assistance + DSM fatigue monitoring, requires infrared night vision camera) and sos emergency button alarm, and can be expanded to a maximum of 512GB memory card. The super capacitor power supply design can protect the integrity of the video even when the power is off abnormally, which is an intelligent safety solution for commercial fleets and logistics management.

Features

  • DMS function:Yawning,Eyes closing, Smoking,making phone calls,distraction,block camera detection.
  • Loop Recording：Every1/3/5 min loop recording, it will auto overvrite the oldest files when thememory card is about full.
  • G-Sensor：Automatically locks and saves key videosin the event of a sudden collision to ensure that accident evidence is not overwritten.
  • Advanced Driving Assistance：Lane Departure warning、Forward collisionwarning,Pedestrian collision warning.
  • Delay Shut Down：The motherboard is equipped with dualsuper capacitors to ensure stable operation during sudden power outages, and also supports delayed shutdown after parking.
  • WiFi hotspot：You can connect to the mobile network orWiFi hotspot through your mobile phone to view the dashcam video files in the memory card in real time.

Specifications

Host specificationsDetails
Model No.D2
Main CPUEEASYTECH SA223
memoryEmbedded 2GB DDR3L  SPI NOR/SPI NAND/eMMC  SD2.0
4G moduleQUECTEL EC200A series （or custom-made it for you)
Screenno screen
4g network bandFDD LTE:B1/B3/B5/B7/B8/B20/B28
TDD LTE:B38/B40/B41
WCDMA:B1/B5/B8
GSM:B3/B8
video quliatyfront is 2560*1440@30fps, rear is 1920*1080P@30fps,
also support the D1 HD1 CIF video quality
view anglefront 135 degree, rear is 125 degree
image sensorfront is GC4653 with 6G lens,back is GC2053 with 6G lens
video codeH.264/H.265
video formatMP4
image formatJPEG
GPS positionexternal GPS atnenna +Beidou
Wifi hot spot2.4G/5.8G
date time mark on videosupport
loudspeakerbuilt into it
microphonebuilt into it
G-sensor6-axis sensor
max TF card it support512G with class 10 or above
power supply9-36V
built into supercapacitorfor the video file protect sudden power cut off
delay shutdownsupport
working temperature-20℃～+70℃
working humidity≤90%

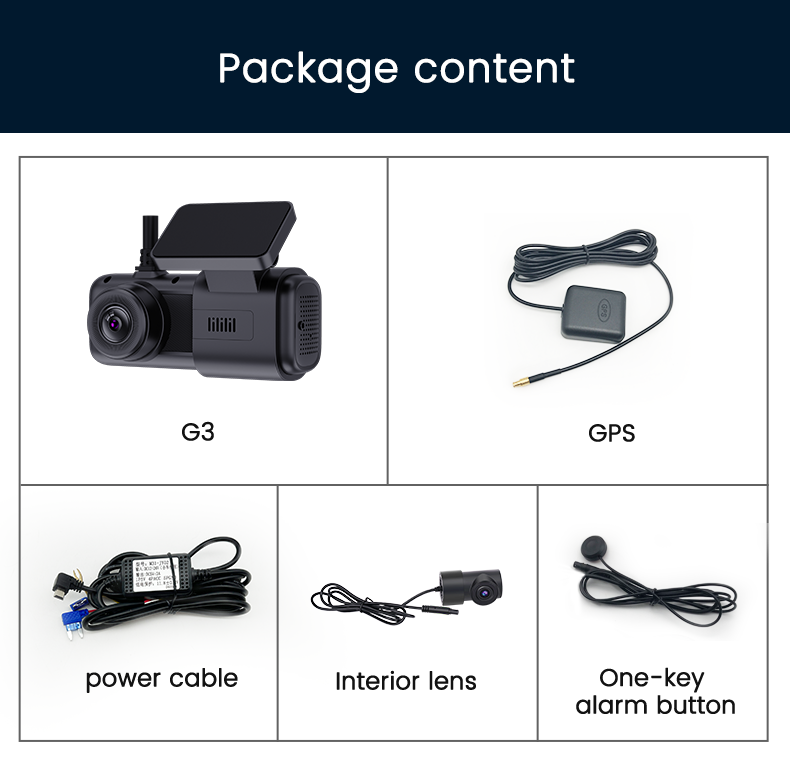

Package content1x G2 dashcam
1x IR night vision inside cam or one back cam (optional)
1x GPS antenna
1x power cable
1x 3M install pad
1x user manual
1x rear camera cable 5 metes in length
weight for full unit0.85KG
Quantity/Carton25PCS
Weight/Carton21.25KG
Carton size39X37X57CM
