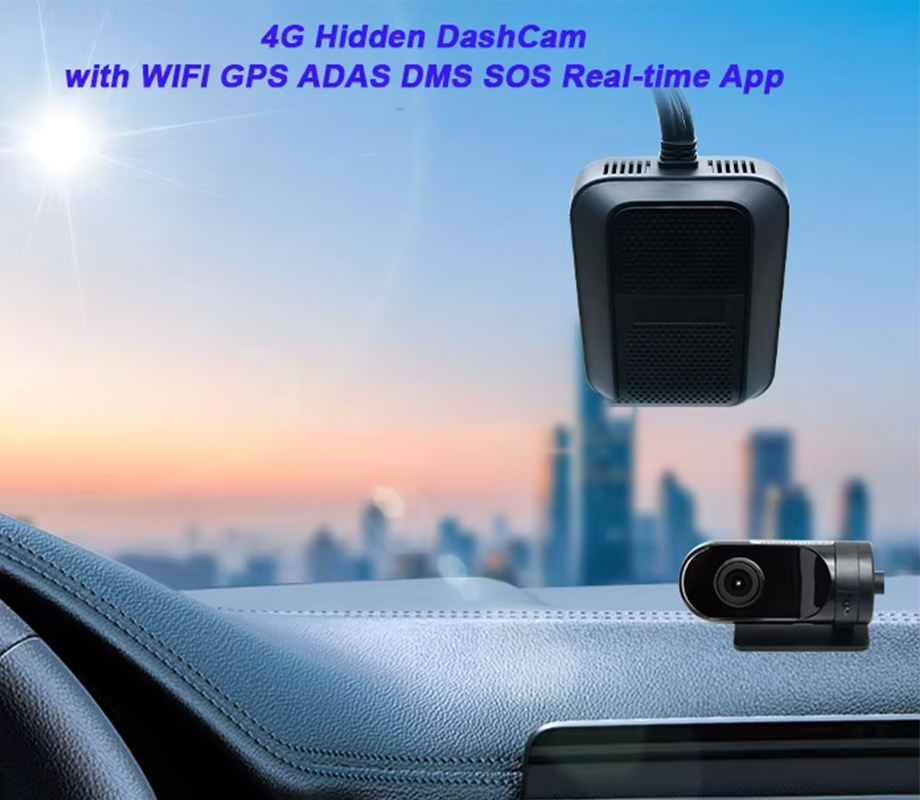

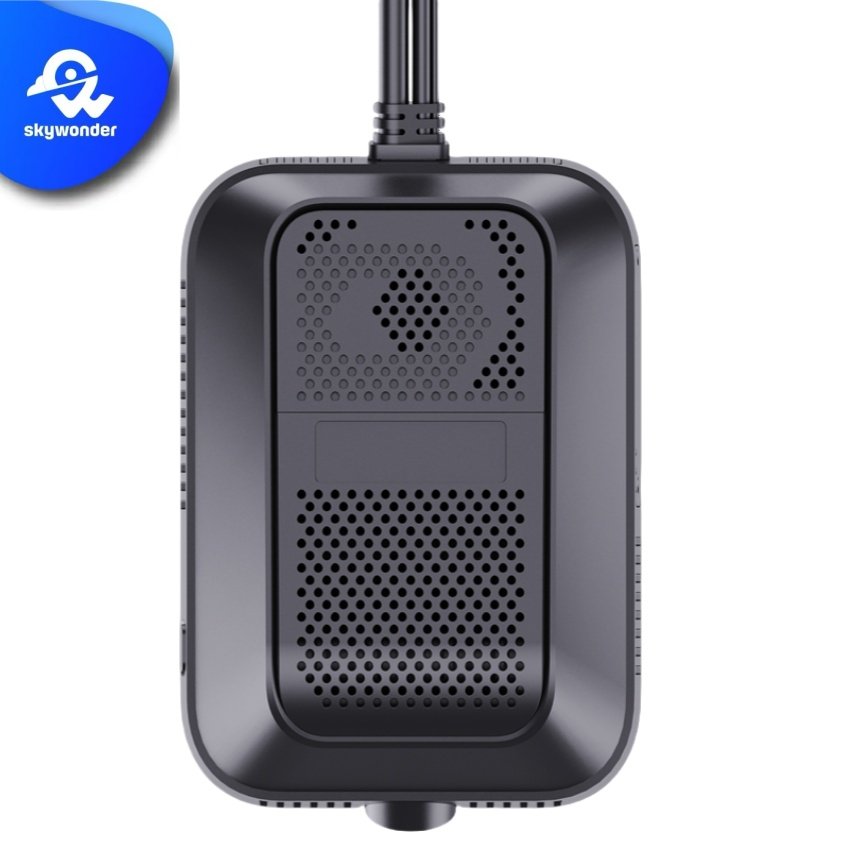

D11 4G Dashcam Main view
D11 4G Dashcam Main view

D11 4G Dashcam

  • ADAS：front vehicle collision, lane departure, pedestrian recognition, vehicle distance detection, etc.
  • DSM：fatigue driving detection, smoking, blocking unsafe driving behavior habit detection, face recognition
  • BSD：front blind spot, rear blind spot, left blind spot, right blind spot detection (not included in standard configuration, requires external camera)
  • Timing tracking：end back the location information at the set interval. The default time for sending back is 30 seconds after ignition and 5 minutes after extinguishing.
  • Rollover alarm：If the device is powered off and the attitude changes, the rollover alarm is triggered.
  • Blind spot pass：When the terminal is located and not online, the data positioning data is stored to the terminal, and the positioning data is uploaded when there is a communication signal.
  • Low voltage alarm：When the terminal detects that the vehicle voltage is below a certain value, the battery low voltage reminder is triggered.
  • Mileage reporting：When the terminal is located, the mileage is uploaded in real time.
Order on WhatsApp
Category Tags , , , , ,

Description

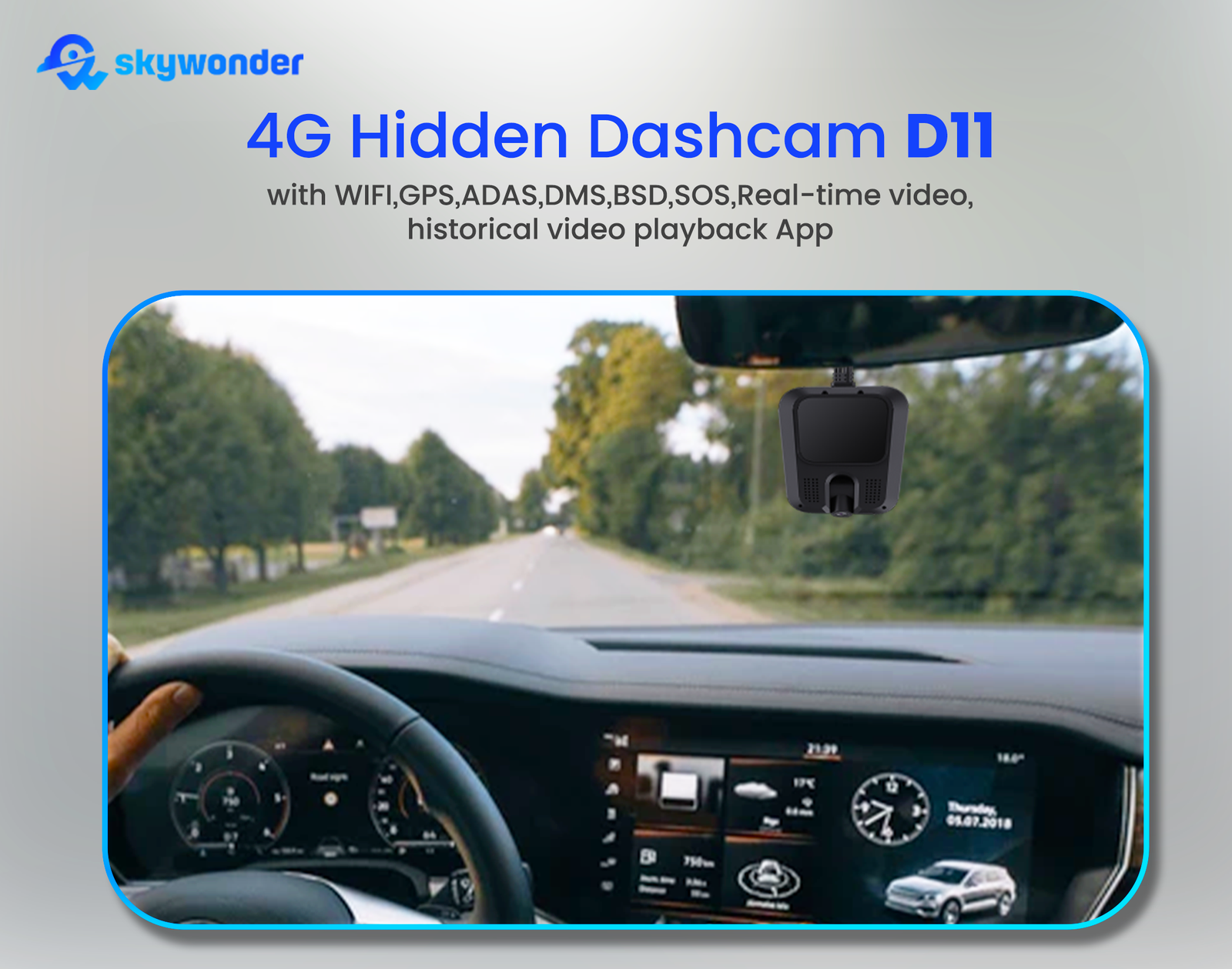

D11 is a comprehensive automotive active safety product that integrates satellite positioning, video surveillance, active safety and other functions. This product meets the needs of fleet monitoring, management, driving safety and standardized driving behavior. Based on advanced deep learning technology, active safety functions – advanced driver assistance system (ADAS), driver monitoring system (DMS), face recognition (FACEID), blind spot monitoring (BSD) and other intelligent algorithms can be applied to complex driving scenarios, improve the safety and efficiency of traffic driving, and enhance the overall user experience.

Features

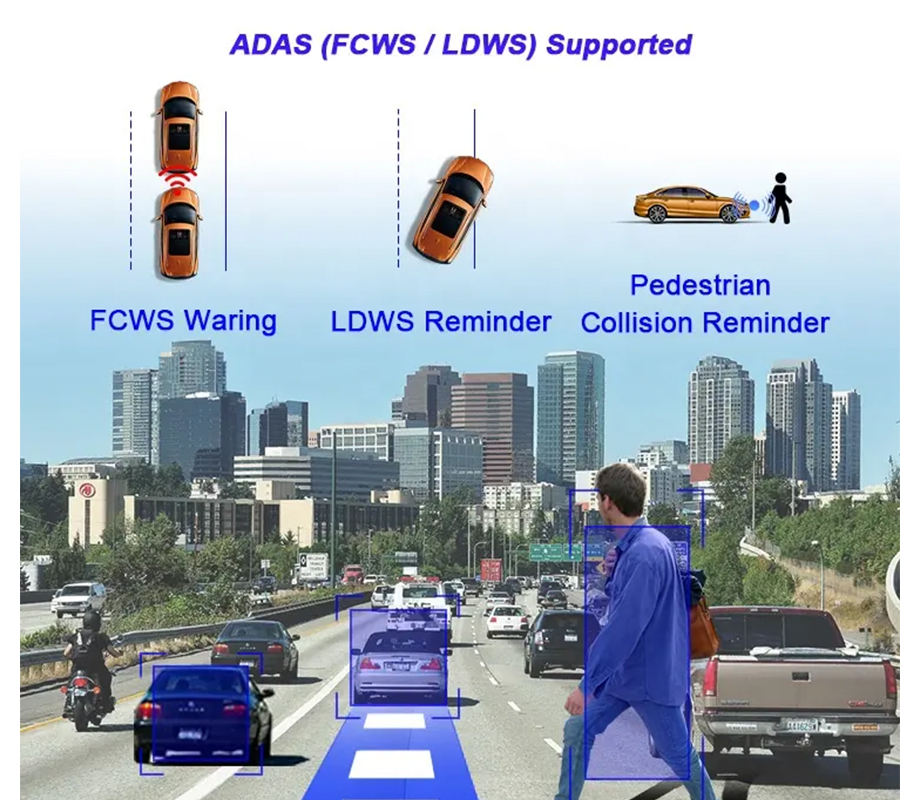

  • ADAS：front vehicle collision, lane departure, pedestrian recognition, vehicle distance detection, etc.
  • DSM：fatigue driving detection, smoking, blocking unsafe driving behavior habit detection, face recognition
  • BSD：front blind spot, rear blind spot, left blind spot, right blind spot detection (not included in standard configuration, requires external camera)

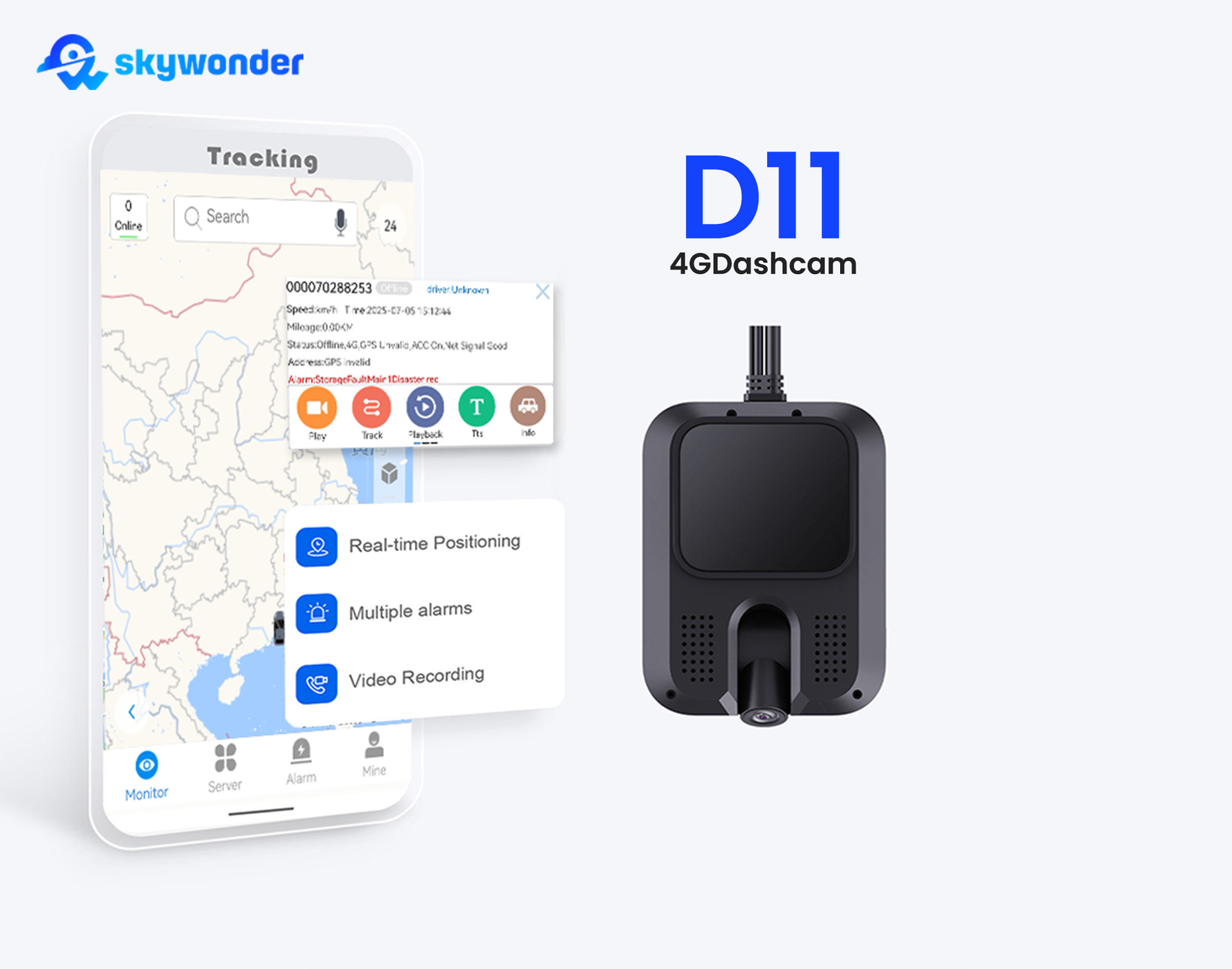

  • Timing tracking：end back the location information at the set interval. The default time for sending back is 30 seconds after ignition and 5 minutes after extinguishing.
  • Rollover alarm：If the device is powered off and the attitude changes, the rollover alarm is triggered.
  • Blind spot pass：When the terminal is located and not online, the data positioning data is stored to the terminal, and the positioning data is uploaded when there is a communication signal.
  • Low voltage alarm：When the terminal detects that the vehicle voltage is below a certain value, the battery low voltage reminder is triggered.
  • Mileage reporting：When the terminal is located, the mileage is uploaded in real time.

Specifications

ItemDescription
NameD11AI intelligent driving assistance equipment
CPUSA230ARM Cortex-A7@1.0GHz
SystemOSLinux
StorageRAM256M DDR3
ROM8GB EMMC
TF cardSingle TF card (up to 512GB)
KeyboardCapacitive touch screen无
Mechanical buttonsSOS/WIFI-KEY，RESET，UBOOT
Function InterfaceCamera 1MIPI, 1080P/25fps or 2K/25fps
Camera 2/3AHD*2, 720P/25fps or 1080P/25fps, built-in AHD chip
4GUSB1 HOST, FPC antenna
GPS/BDUART, built-in 1612 module, ceramic antenna; support external GMOS, 3.3V power supply (reserved optional)
WIFISDIO, built-in 8189 module, WIFI: IEEE802.11 b/g/n, onboard antenna (FPC antenna reserved)
G-sensorI2C interface, 3-axis SC7A20H
GyroscopeI2C interface, 6-axis BMI160 (reserved optional)
Speaker3W/4Ω, 1.25mm pitch socket
MICElectret MIC, 1.25mm pitch socket
RS2321 (compatible with TTL) (reserved optional)
IO input3路（ACC、Input、SOS）
IO output1 channel (Relay)
Indicator light3 channels onboard (recording status, networking status, GPS status)
WatchdogHardware reset (reserved optional)
Sleep wake-up4G, vibration, SOS wake-up
RTCInternal clock
BatteryFarad capacitor, 1.25mm pitch socket
Power input12V/24V（DC9~36V）
TemperatureOperating Temperature -20~70℃
Storage Temperature -40~85℃
