⚫Support AI ADAS & DSM Fatigue Alarm
⚫1080P Full HD ADAS Camera + Extended 3 channel cameras (totally 4CH)

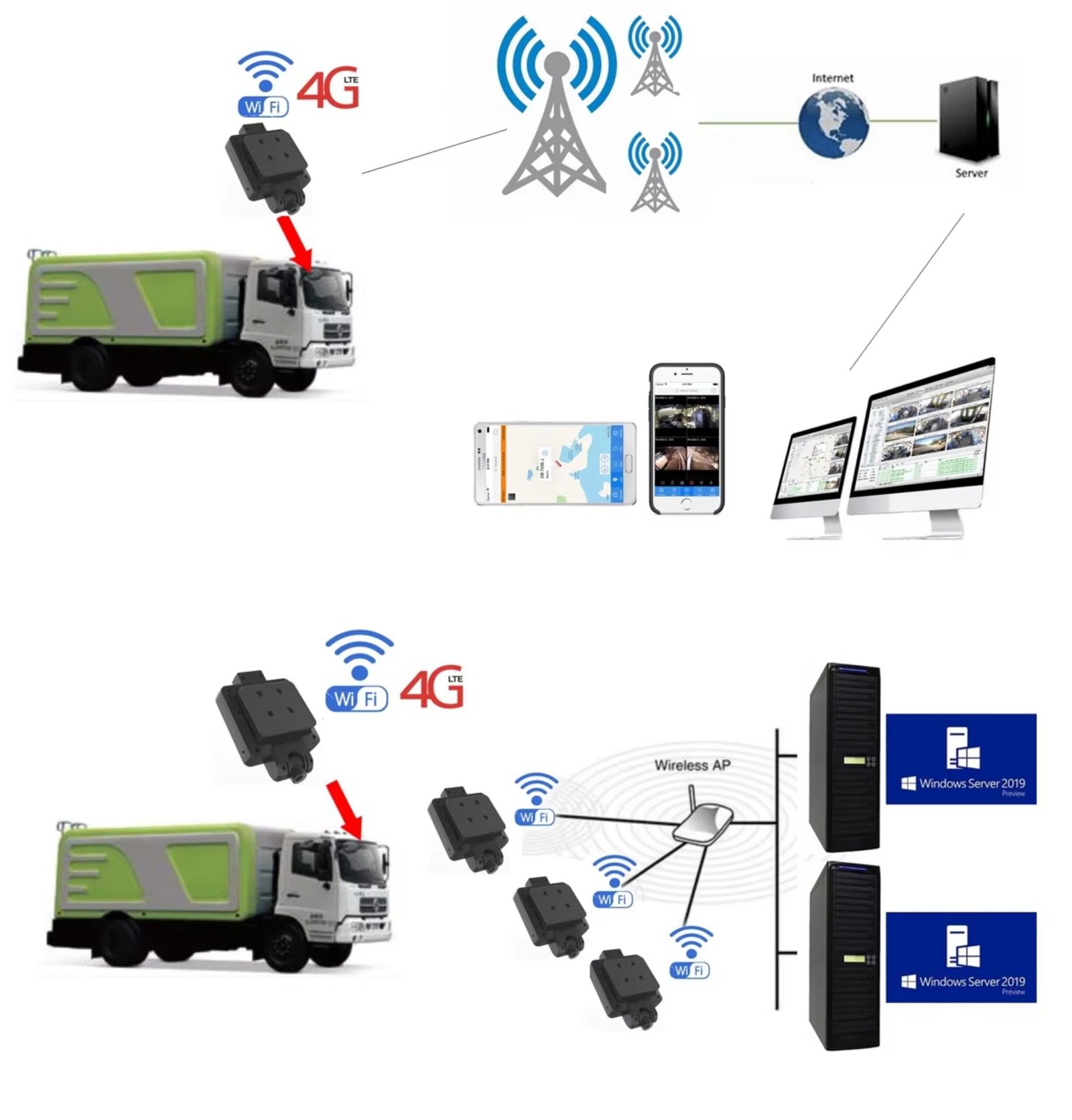

⚫4G Remote Live Streaming/Downloading
⚫Alarm Video Upload to Cloud Server Storage Automatically
⚫Built-in Microphone & Speaker for Two Way Communication
⚫Harsh Event : Harsh Braking/Acceleration/Cornering/Collision Alarm
⚫SOS Panic Button Alarm
⚫4x I/O Alarm Input

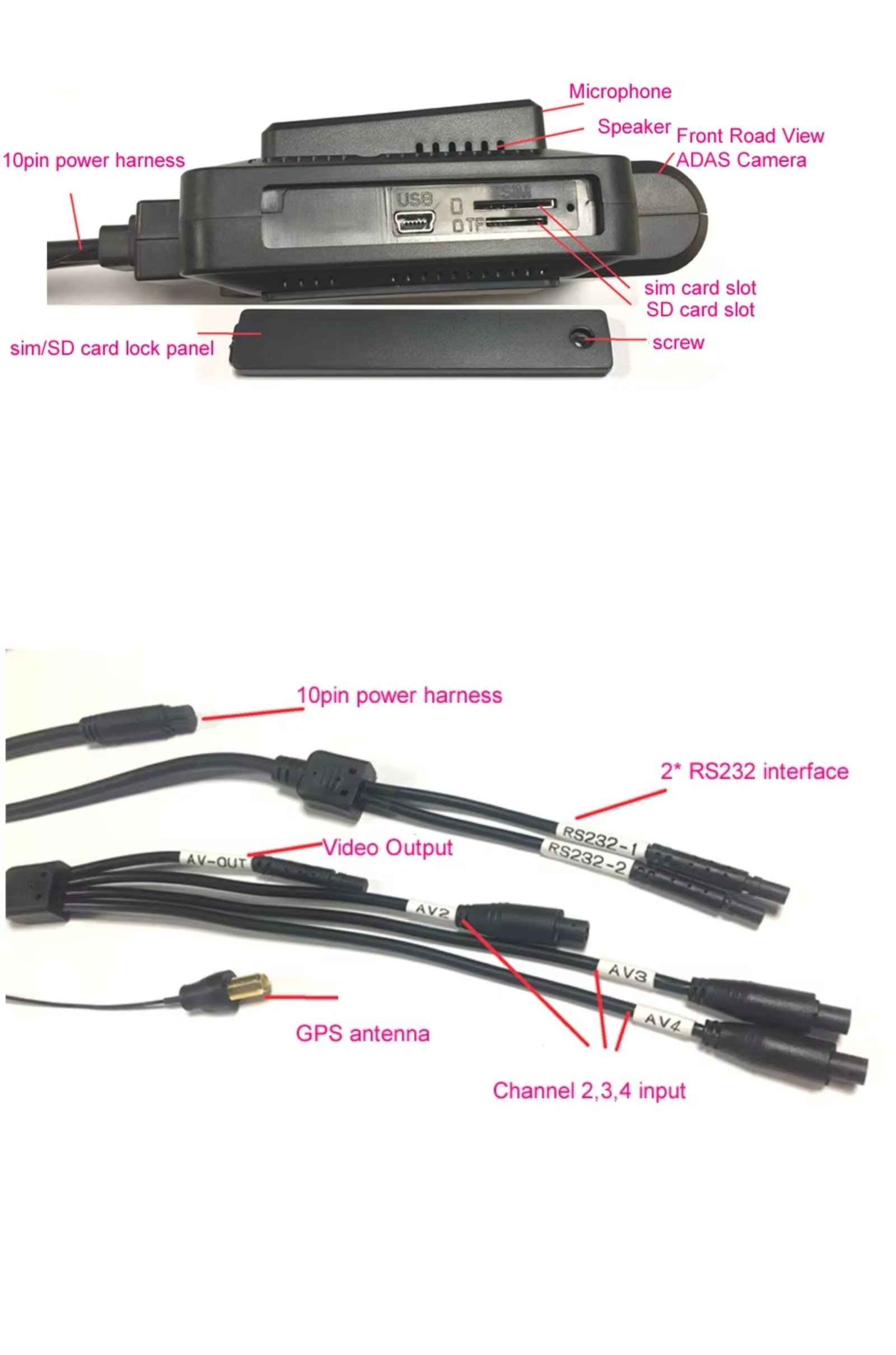

⚫2x RS232 interface for Fuel Level sensor /Eurosens LLS Fuel Sensor/RFID/Temperature Sensor
⚫Support Software Platform
CMSV6 (Video & GPS Tracking)
Gurtam Wialon (Video & GPS Tracking)Curbsoft (Video & GPS Tracking)
GPS-Server (only GPS Tracking)
Or Web API Integration to customer’s platform

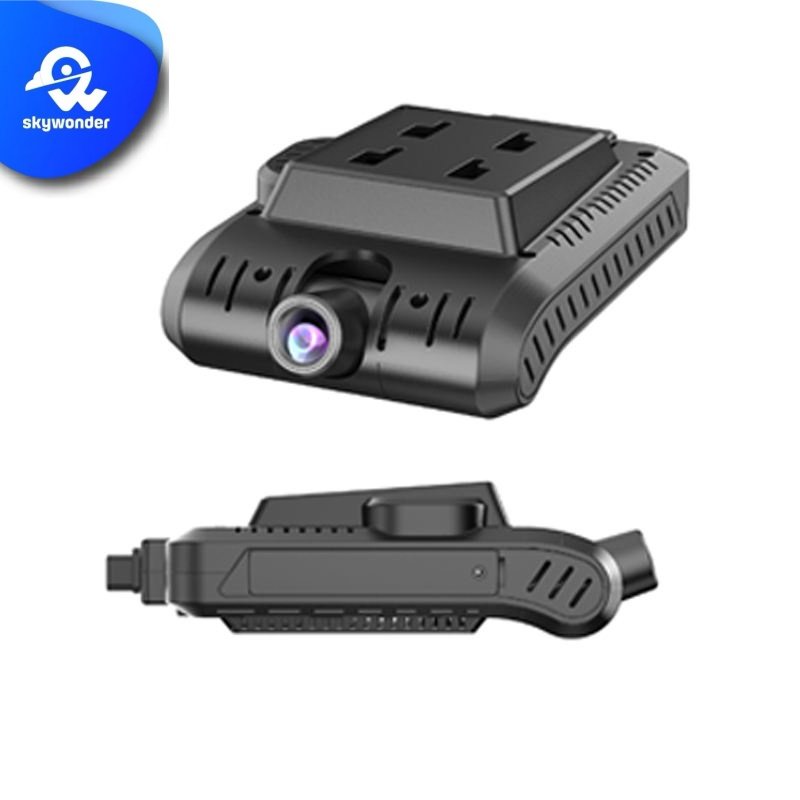

D10 is a 4G driving recorder with integrated AI ADAS + fatigue monitoring, equipped with 1080P main camera + 3-way extended lens, 4G remote monitoring + cloud storage, and supports two-way calls. It can intelligently identify dangerous driving behaviors, comes with an SOS button + 4-way alarm interface, and can be expanded to connect various sensors. It is compatible with mainstream fleet management platforms to help fleets achieve intelligent safety management and control.
1.H.265&H.264 codec is adopted to save storage space and transmission flow;
2.Support 4-circuit 1080P * 15FPS/2-circuit 1080P * 30FPS, 4-circuit 720P, D1 and other codecs;
3.A built-in 1080P camera and an external three high-definition camera are convenient for installation;
4.Built in two-way AI intelligent algorithm, which can support ADAS and DMS functions;
5.Built in GPS+Beidou dual mode precise positioning;
6.Support one TF card and super capacitor to double guarantee the integrity of video files;
7.Support 1 SIM card, 4G module can support global frequency band;
8.Support WIFI hotspot;
9.Support mobile APP, client, platform software preview video and parameter configuration;
10.Support two IO alarm inputs and one RS232;
11.Built in speaker and microphone to support two-way voice intercom between equipment and platform; TTS voice broadcast;
12.One button SOS emergency call; Support low power sleep;
13.Dedicated file system to improve disk reading and writing efficiency and make video recording more stable;
| Host specifications | Details |
| Video compression format | H.264 Compressed format |
| Preview function | Single road, 2 screen, 4 screen splicing preview, support manual / event trigger full-screen display function |
| Video resolution | Support for 1080P, 720P, D1, HD1, CIF is optional, encoding the total resource of 1080P 60 frames |
| Video method | Default automatic video recording, support for ignition video recording, alarm video recording, etc |
| Video playback | 2 synchronous playback 2,4,8,16X Fast forward or fast back |
| Recording method | Sound is recorded simultaneously with the video |
| IO alarm input | Support 2-channel switch quantity input, support one-button SOS alarm; |
| Sensor | Built-in 3-axis acceleration sensor |
| GPS fixed position | Support for the built-in GPS / BD module |
| ADAS | Lane departure, collision alarm, vehicle distance detection, etc |
| DSM | Fatigue driving detection, smoking, phone calls, shielding, unsafe driving behavior and habit detection |
| BSD(selectable) | Left blind area, right blind area, front blind area, back blind area |
| Work Temperature | -10℃ to +60℃ |
| Work Humidity | 20% to 80% |
| Password access | User password, administrator password two-level management |
| Appearance size | 138mm *85mm*45mm |
| Net weight | 0.3 kg |
